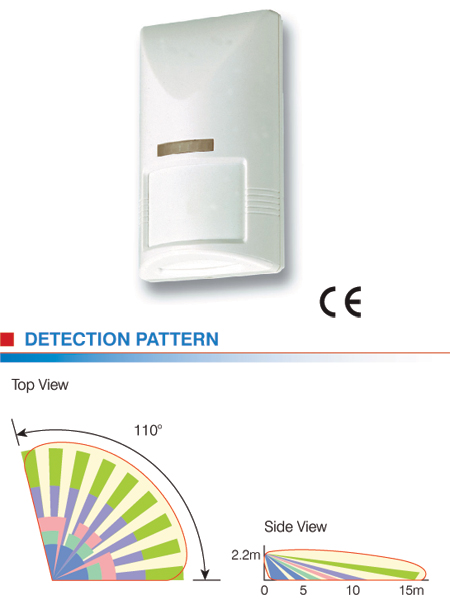

Dual Technology Occupancy Sensor

Product ID: OS-550DT

Send Inquiry
The OS-550DT is an advanced dual technology occupancy sensor that combines passive infrared (PIR) and microwave (MW) sensing technologies into one housing. By integrating two different sensing technologies with intelligent firmware control, the
OS-550DT features second-to-none occupancy sensing performance.

This sensor will provide a voltage free, changeover relay output for HVAC or lighting controls when it verifies human presence within its detection area. An ECG output can be linked with 0 ~ 10 V dimmer control unit.

Its unique ON and OFF offers versatile and custom controls. SmartDelay setting technology enables sensor installation with minimal adjustment. The audible Delay-End Warning (DEW) can be enabled to alert the occupant the approaching of delay expiration. For today's state-of-the-art building management, IR-TEC's OS-550DT
dual technology occupancy sensor offers all the edges you need for lighting and HVAC controls.

Specifications
  • Power supply: 18 ~ 26 VAC/DC
  • Current drain: 20 mA @24 VDC
  • Detection range: 110° 15 m at 25°C
  • Relay output: Form C, 5A
  • Mounting height: 1.8 ~ 3.6 m
  • ON delay: 0 - 5" - 10" - 20" - 30" - 1' - 3' - 5' selectable
  • OFF delay: 10" - 1' - 3' - 5' - 10' - 20' - 30' - 60' selectable
  • LUX level setting: 1 ~ 2,000 lux, 4 sections setting
  • Detectable speed: 0.1 ~ 3 m/sec. (0.3 ~ 10 ft/sec.)
  • Manual override: Momentary contact
  • Auto-off time: 5 times of OFF delay time
  • Walk-thru delay: 3 minutes if no activity after 30 seconds
  • RFI immunity: Average 25 V/m (10 ~ 1,000 MHz)
  • Temperature: -10°C ~ 60°C (14°F ~ 140°F)
  • Humidity: 95% RH max.
  • Dimensions: 112 x 66 x 45 mm (4.4 x 2.6 x 1.8")
Features
  • Combined PIR & Microwave sensors in one.
  • Superior occupancy detection performance.
  • Programmable ON and OFF delays.
  • SmartDelay automatic setting technology.
  • Disabled audible Delay End Warning.
  • Ceiling/wall mounting bracket included.
  • Walk through mode for passage occupancy.
  • ECG output for 0~10V dimmer control.
  • Programmable LUX level threshold setting.
  • Manual override signal input terminal.
