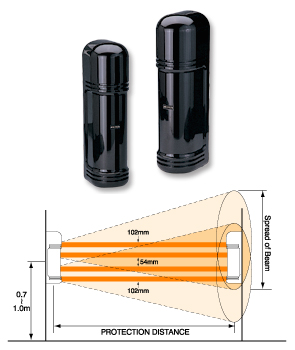

Quad Photoelectric Beam Detector

Product ID: PX-Q120 / PX-Q200

Send Inquiry
PX-Q120 and PX-Q200 are two models of frequency selectable quad photoelectric beam detectors developed for high reliability perimeter protection.

A digital filter circuit provides false alarm immunity caused by environmental interference. 400 times of detecting allowance maintains the unit stable even with 99.75% of the beam blocked.

Specifications
  • PX-Q120
    • Detection range (out): 50 ~ 120 m
    • Maximum distance: 2,400 m
    • Current drain: 90 mA
  • PX-Q200
    • Detection range (out): 120 ~ 200 m
    • Maximum distance: 4,000 m
    • Current drain: 100 mA
  • Beam source: 4 x IR LED
  • Detection method: Quad beam simutaneous cut-off
  • Response time: 35 ~ 700 msec.
  • Alarm output: Form C, 30 VAC/DC, 0.5A
  • Tamper protection: N.C. cover open activate
  • Optical axis djustment: 180° horizontal, 24° vertical
  • Power supply: 12 ~ 28 VDC
  • Temperature: -25°C ~ 55°C (-5.5°F ~ 130°F)
  • Dimensions: 350 x 99 x 104 mm
Features
  • Quad beam detection.
  • Automatic gain control circuit.
  • Built-in optical viewfinder.
  • Lightning surge protection.
  • 4-channel changeable frequencies.
  • Digital filter circuitry.
  • Adjustable blocking time.
  • Multiple receiving indications.
  • Form C alarm relay output.
  • Anti-fog and anti-dew design.
  • H/V optical axis adjustment.
  • High level RFI/EMI immunity.
