Outdoor Motion Detector
Product ID: DP-250Send Inquiry
DP-250 outdoor motion sensor is a high quality PIR+MW dual technology sensor with esthetically pleasant housing design. This state-of-the-art product is a combination of passive infrared and microwave sensors.
The alarm signal of the motion detector is generated only when both sensors detect the intrusion at the same time. Therefore, its detection reliability is virtually greater than single technology device. The DP-250 can protect the area up to 15 m long and 110 degree wide from intrusion. For security system requires reliable detection, DP-250 outdoor detector is a cost effective solution.
- Power supply: 9 ~ 16 VDC, 12 VDC typical
- Current drain: 30 mA, @12 VDC
- Infrared sensor: Dual element, high sensitivity, low noise
- Mucriwave sebsir: DRO type, patch antenna

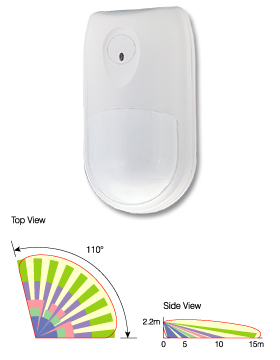

- Detection angle: 110 degree wide
- Detection range: 15m @25°C
- Mounting height: 2.0 ~ 2.4m, 2.4 ~ 3.6 m with bracket
- Alarm output: NC, 0.2 A, 30 VDC
- Tamper: NC open trigger
- Pulse count: 1 / 2 / 3, selectable
- Temperature: -20°C ~ 50°C (-4°F ~ 122°F)
- Outdoor Motion Detector Dimensions: 132 x 72 x 57 mm
- Advanced DRO microwave sensor.
- 3D spherical white light filter lens.
- Second-to-none look down detection.
- Motion signal discretion technology.
- Intelligent pulse count PIR detection.
- Superior RFI & EMI protection.
- Adjustable microwave detection range.
- Temperature compensated PIR sensor.
- Fluorescent light interference filter.
