Lift Access Controller Link with Intercom
Click here for details.

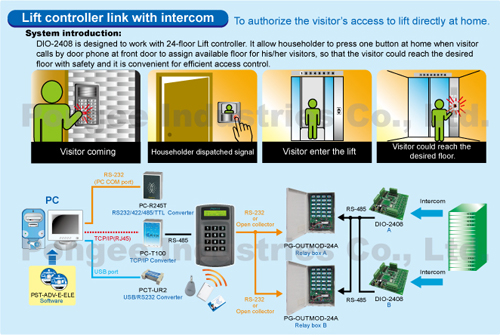

DIO-2408 is designed to support and work with 24-floor Lift controller. It can allow householder to press one button at home when visitor called by door phone front door to assign available floor for his/her visitors, so that the visitor could reach the desired floor with safety and it is helpful convenient for efficient access control.
Specifications
- Dimensions:118(L) × 75(W) × 13(H) mm
- Operating temperature /humidity: -15 °C ~ 55 °C / 20%~90%
- Power supply:DC 12V / 1AMP
- Current:Standby 25~35mA / Working 60~70mA
- Serial interface:Open collector / RS-485 / RS-232
- We reserve the right to change the specification without notice or obligation!
