Pongee Industries Co., Ltd.

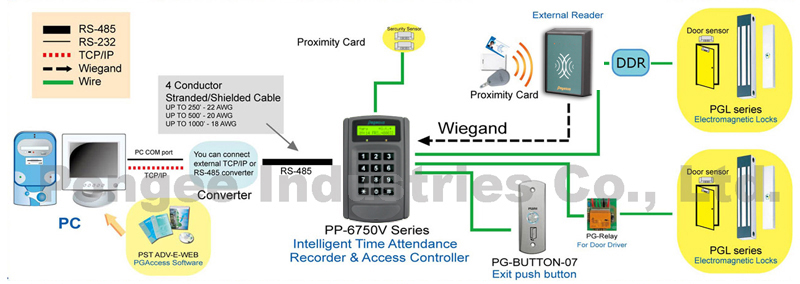

♦ Proximity / RF / Remote reader to send out Wiegand / TTL / RS-485 / RS -232C / RS-422 and other signal.
♦ Indications: Visible 5 LED and beeps sound.
♦ 125KHz ASK type and various Wiegand format (26/34 bits) output.
♦ Reading range from 5 to 15 cm .
♦ Indications: Visible 5 LED and beeps sound.
♦ 125KHz ASK type and various Wiegand format (26/34 bits) output.
♦ Reading range from 5 to 15 cm .
| Dimension | 120(L)x 83(W)x 30(H)mm |
|---|---|
| Weight | 250g ±5% |
| Type | Surface mount, waterproof |
| Power supply | 12 V DC |
| Interface | RS-485, RS-232, RS-422, Wiegand |
| Transmission rate | 4,800 bps, N.8.1 (optional for 300~19200bps) |
| Keypad | With brief 3 x 4 membrane keypad for system programming and password entry for PP-5211 |
| Card | 125 KHz Proximity card |
| Monitor inputs | Door contact, Exit push button, switch tamper |
| - | We reserve the right to change the specification without notice or obligation! |
