Axial AC Fan - SJ8025

Axial AC Fan - SJ8025

Click here for details.

AC Fan

Product ID: SJ8025HA1SAT (L)

Send Inquiry

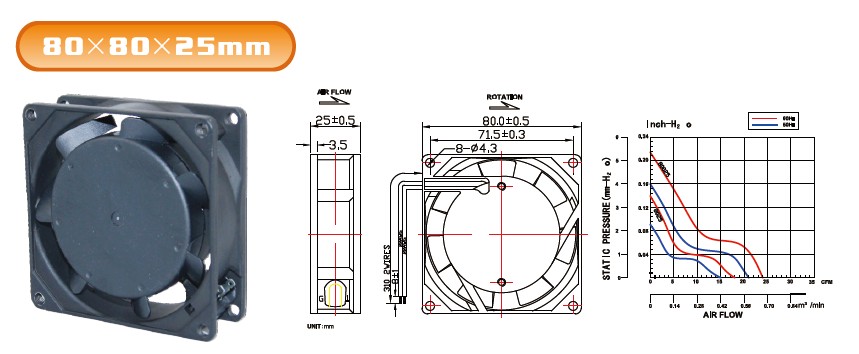

    • Square Frame : 80 mm * 80 mm
    • Housing Thickness : 25 mm
    • Bearing System : Sleeve
    • Rated Vottage(V) : 110 / 120
    • Freq.(hz) : 50 / 60
    • Current(A) : 0.14 / 0.12
    • Input Power(W) : 12 / 9
    • Speed(RPM) : 2600 / 3100
    • Air Flow(CFM) : 21 / 24
    • Air Flow(m3/min) : 0.59 / 0.68
    • Static Pressure(lnch-H2 o) : 0.16 / 0.22
    • Noise Level(db-A) : 32 / 35

Model

Part No.

Bearing System

Rated Voltage

Freq.

Current

Input Power

Speed

Air Flow Air Flow Static Pressure Noise Level

( V )

( Hz )

( A )

( W )

(RPM)

(CFM) (m3/min) (lnch-H2 o) (db-A)
SJ8025 SJ8025HA1BAT (L) Ball 110/120V 50/60 0.14/0.12 12/9 2600/3100 21/24 0.59/0.68 0.16/0.22 32/35
SJ8025HA1SAT (L) Sleeve 110/120V 50/60 0.14/0.12 12/9 2600/3100 21/24 0.59/0.68 0.16/0.22 32/35
SJ8025LA1BAT (L) Ball 110/120V 50/60 0.14/0.12 12/9 1900/2400 15/18 0.42/0.51 0.09/0.14 27/31
SJ8025LA1SAT (L) Sleeve 110/120V 50/60 0.14/0.12 12/9 1900/2400 15/18 0.42/0.51 0.09/0.14 27/31
SJ8025HA2BAT (L) Ball 220/240V 50/60 0.07/0.06 13/10 2600/3100 21/24 0.59/0.68 0.16/0.22 32/35
SJ8025HA2SAT (L) Sleeve 220/240V 50/60 0.07/0.06 13/10 2600/3100 21/24 0.59/0.68 0.16/0.22 32/35
SJ8025LA2BAT (L) Ball 220/240V 50/60 0.07/0.06 13/10 1900/2400 15/18 0.42/0.51 0.09/0.14 27/31
SJ8025LA2SAT (L) Sleeve 220/240V 50/60 0.07/0.06 13/10 1900/2400 15/18 0.42/0.51 0.09/0.14 27/31
Specifications
Cooling fan
Certificate
  • CE
  • TUV -LVD
  • TUV-EMC
  • UL
  • cUL
  • CCC
