Axial AC Fan - SJ8038

Axial AC Fan - SJ8038

Click here for details.

AC Fan

Product ID: SJ8038HA2SAT (L)

Send Inquiry

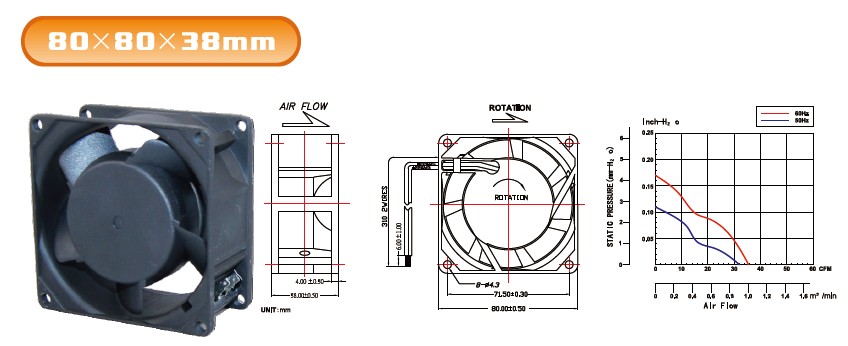

    • Square Frame : 80 mm * 80 mm
    • Housing Thickness : 38 mm
    • Bearing System : Sleeve
    • Rated Vottage(V) : 220 / 240
    • Freq.(hz) : 50 / 60
    • Current(A) : 0.08 / 0.06
    • Input Power(W) : 15 / 10
    • Speed(RPM) : 2600 / 3100
    • Air Flow(CFM) : 25 / 32
    • Air Flow(m3/min) : 0.71 / 0.91
    • Static Pressure(lnch-H2 o) : 0.17 / 0.23
    • Noise Level(db-A) : 31 / 35


Model Part No. Bearing System Rated Voltage Freq. Current Input Power Speed Air Flow Air Flow Static Pressure Noise Level
( V ) ( Hz ) ( A ) ( W ) (RPM) (CFM) (m3/min) (lnch-H2 o) (db-A)
SJ8038 SJ8038HA1BAT (L) Ball 110/120V 50/60 0.15/0.11 16/11 2600/3100 25/32 0.71/0.91 0.17/0.23 31/35
SJ8038HA1SAT (L) Sleeve 110/120V 50/60 0.15/0.11 16/11 2600/3100 25/32 0.71/0.91 0.17/0.23 31/35
SJ8038HA2BAT (L) Ball 220/240V 50/60 0.08/0.06 15/10 2600/3100 25/32 0.71/0.91 0.17/0.23 31/35
SJ8038HA2SAT (L) Sleeve 220/240V 50/60 0.08/0.06 15/10 2600/3100 25/32 0.71/0.91 0.17/0.23 31/35
Certificate
  • CE
  • TUV -LVD
  • TUV-EMC
  • UL
  • cUL
  • CCC
