Axial AC Fan

Product ID: SJ9238HA1BAT

Send Inquiry

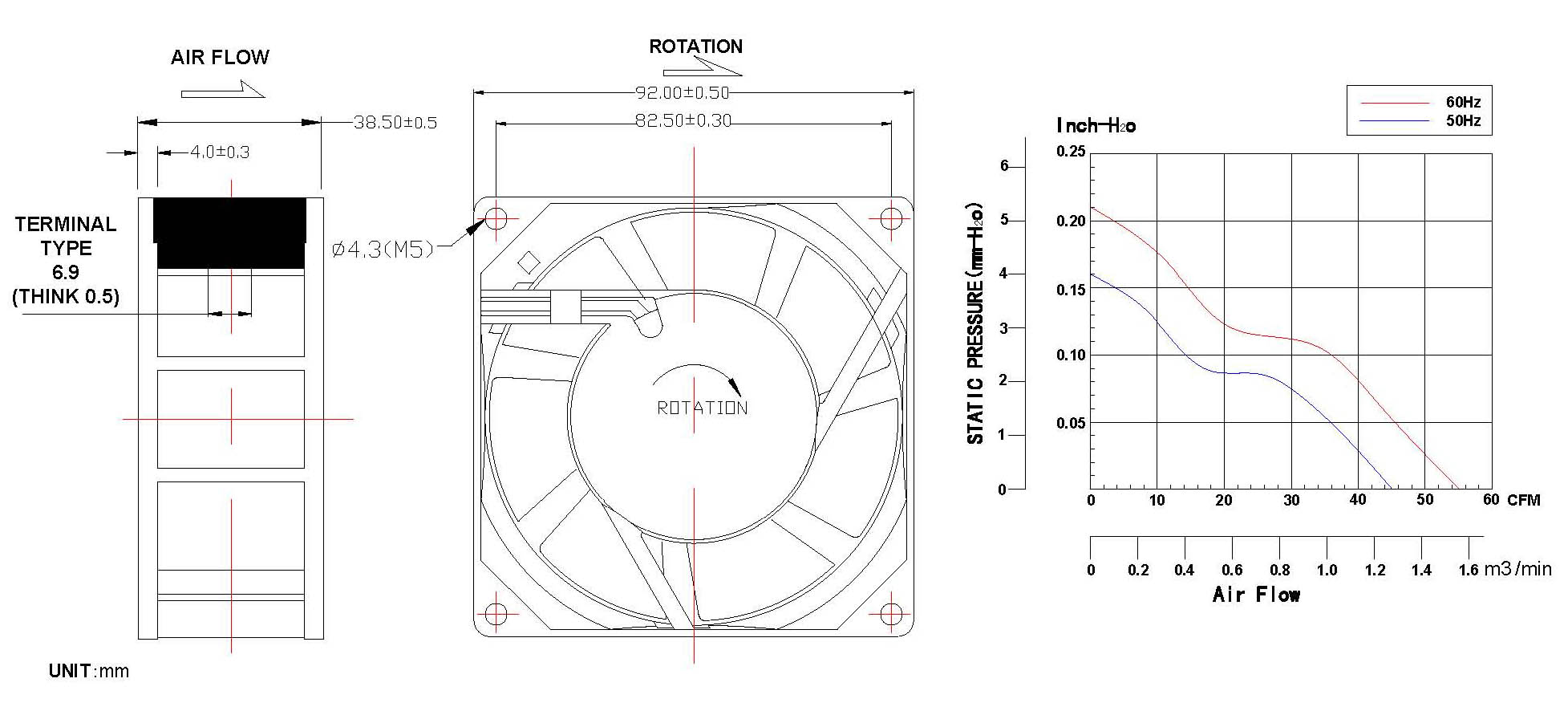

    • Square Frame : 92 mm * 92 mm
    • Housing Thickness : 38 mm
    • Bearing System : Ball
    • Rated Vottage(V) : 110 / 120
    • Freq.(hz) : 50 / 60
    • Current(A) : 0.12 / 0.15
    • Input Power(W) : 15 / 9
    • Speed(RPM) : 2200 / 2400
    • Air Flow(m3/min) : 1/27 / 1.56
    • Static Pressure(lnch-H2 o) : 0.16 / 0.21
    • Noise Level(db-A) : 37 / 41
Model Part No. Bearing System Rated Voltage Freq. Current Input Power Speed Air Flow Air Flow Static Pressure Noise Level
( V ) ( Hz ) ( A ) ( W ) (RPM) (CFM) (m3/min) (lnch-H2 o) (db-A)
SJ9238 SJ9238HA1BAT (L) Ball 110/120V 50/60 0.12/0.15 15/9 2200/2400 45/55 1.27/1.56 0.16/0.21 37/41
SJ9238HA1SAT (L) Sleeve 110/120V 50/60 0.12/0.15 15/9 2200/2400 45/55 1.27/1.56 0.16/0.21 37/41
SJ9238HA2BAT (L) Ball 220/240V 50/60 0.07/0.06 13/10 2200/2400 45/55 1.27/1.56 0.16/0.21 37/41
SJ9238HA2SAT (L) Sleeve 220/240V 50/60 0.07/0.06 13/10 2200/2400 45/55 1.27/1.56 0.16/0.21 37/41
Specifications
  • Square Frame : 92 mm * 92 mm
  • Housing Thickness : 38 mm
  • Bearing System : Ball
  • Rated Vottage(V) : 220 / 240
  • Freq.(hz) : 50 / 60
  • Current(A) : 0.12 / 0.15
  • Input Power(W) : 15 / 9
  • Speed(RPM) : 2200 / 2400
  • Air Flow(m3/min) : 1.27 / 1.56
  • Static Pressure(lnch-H2 o) : 0.16 / 0.21
  • Noise Level(db-A) : 37 / 41
Features
Cooling fan
