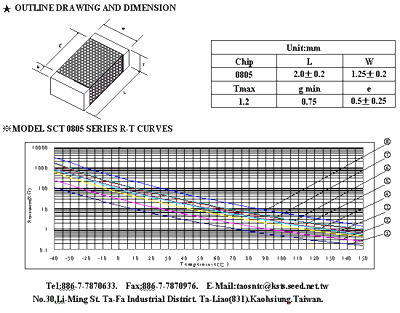

Please click products picture for Outline Drawling and Dimension & R-T curves.
Click here for details.
For your communication, temperature compensation and sensing.
Features
- We offer 1206, 0805, 0603 chip thermistors.
- Custom designs are also welcome.
| Part No. | No load Resistance at 25 deg C (Ω) | Max. permissible current at 25 deg C (mA) | Working current (mA) | B Constant (K) | Approx Thermal Dissipation Constant (m W/deg C) | Approx Thermal time Constant (Sec) |
|---|---|---|---|---|---|---|
| SCT-502Yx | 5000 | 30 | 0.6 | 3500 | 2 | 4 |
| SCT-103Yx | 10000 | 20 | 0.5 | 3720 | 2 | 4 |
| SCT-203Yx | 20000 | 15 | 0.4 | 3850 | 2 | 4 |
| SCT-303Yx | 30000 | 12 | 0.35 | 3960 | 2 | 4 |
| SCT-333Yx | 33000 | 12 | 0.35 | 3960 | 2 | 4 |
| SCT-473Yx | 47000 | 10 | 0.3 | 4000 | 2 | 4 |
| SCT-503Yx | 50000 | 10 | 0.3 | 4000 | 2 | 4 |
| SCT-104Yx | 100000 | 8 | 0.15 | 4130 | 2 | 4 |
