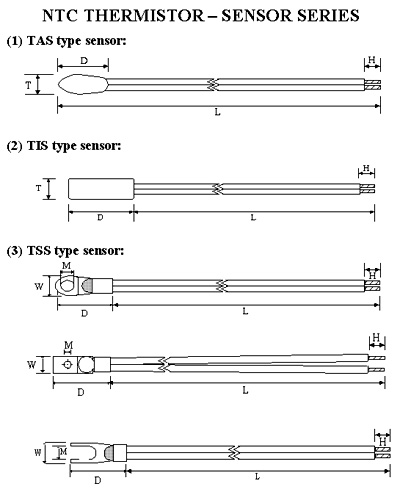

Picture for drawing

Picture for drawing

Click here for details.

NTC Thermistor

Product ID: SENSOR

Send Inquiry
For your air conditioner, refrigerator, room temperature control, and heater.
Please click photo
Specifications
  • B constant: 3000~4600.
  • Zero power resistance at 25 Celsius: 85ohms to 500Kohms.
  • Thermal time constant approx.: 12 seconds to 15 seconds.
  • Thermal dissipation constant approx.: 3.6Mw / Celsius.
  • Operating temperature: -40 to 125 Celsius.
Features
.Custom designs are also welcome.
Resistance at 25 deg C (ohms) Operating Temperature Range (deg C) B Constant (deg K) Thermal Time Constant Approx. (Sec.) Thermal Dissipation Constant Approx. (m W/deg C)
2.2KΩ -40~+125 3900 13 3.6
5KΩ -40~+125 4000 14 3.6
10KΩ -40~+125 4100 14 3.6
15KΩ -40~+125 4150 14 3.6
100KΩ -40~+125 4400 15 3.6

Main Products

NTC thermistor
