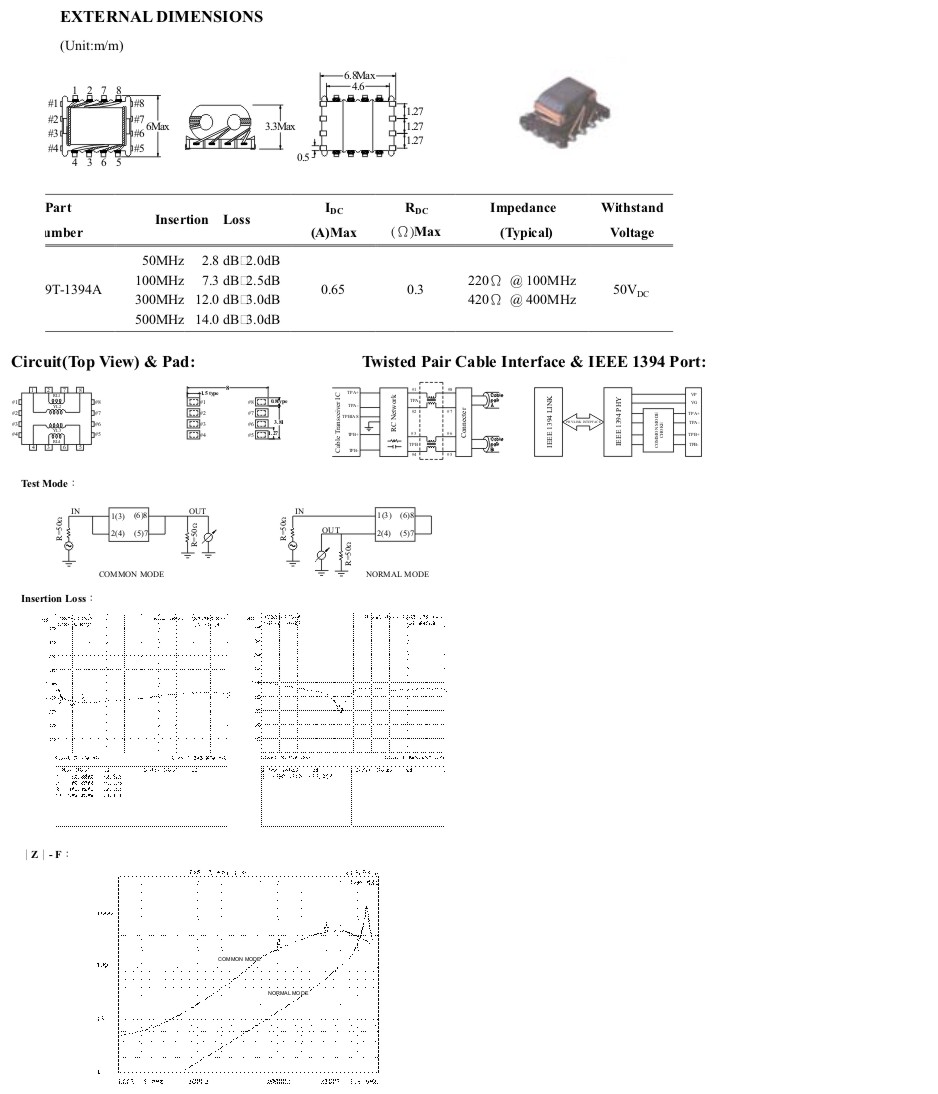

*Features:
1.Low profile: 3.3mm(Max).
2.Common mode impedance of 220Ω at 100MHz ,420Ω at 400MHz.
3.Operating temperature Range: -25℃~+85℃.
4.Suitable for reflow soldering.

*Applications:
1.YB009T-1394A Series is a dual wound common mode choke w/c is ideal for NOISE ATTENUATION
in a twisted pair cable interfaces as well as IEEE1394 & USB2.0 applications. An excellent impedance
balance between two sets of twisted pairs is achieved by winding across a single core .
2.One YB009T-1394A common mode choke coil per interface port is possible with this dual winding
configurations.
