Hollow Wall Anchors (J-Type)

Product ID: 05

Send Inquiry
Specifications
  • Suitable for: Plasterboard, Plywood, Chipboard and Fiberboard's
  • Characteristics: Removable Screw, Extra Strong Tensioned Anchor Arms
  • Material: Steel
  • Mini. Q'ty: 20,000pcs/per size

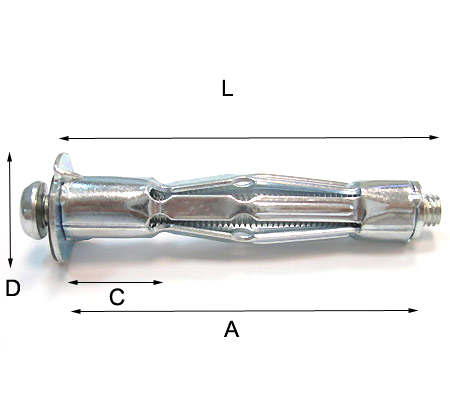

Item No. (Unit: MM) Size Screw L A B C D Hole Grip Maxi Pull Out (kgs)
405 4XS M4 25 20 6.8 2.6 13.5 9 UP-4 40
409 4S M4 39 32 6.8 6.8 13.5 9 3-11 70
409-S 4S M4 50 32 6.8 6.8 13.5 9 3-11 70
412 4E M4 42 35 6.8 10 13.5 9 5-12 70
416 4MS M4 45 38 6.8 13 13.5 9 8-16 70
423 4L M4 52 45 6.8 20 13.5 9 16-23 70
427(425) 4EL M4 60 54 6.8 23 13.5 9 17-27 70
438 4XL M4 65 60 6.8 34.5 13.5 9 31-38 70
514 6S M5 58 52 9 13 16 11 7-16 80
527 6L M5 71 65 9 26 16 11 17-32 80
545 6XL M5 88 80 9 41 16 11 32-45 80
614 8S M6 58 52 10.5 13 17.5 13 7-16 90
627 8L M6 71 65 10.5 26 17.5 13 17-32 90
645 8XL M6 88 80 10.5 40 17.5 13 32-45 90
810 E M8 45 37 12 8 19 14 6-13 90
814 S M8 58 52 12 12 19 14 3-16 90
827 L M8 71 65 12 25 19 14 17-32 90
845 XL M8 88 80 12 40 19 14 32-45 90
