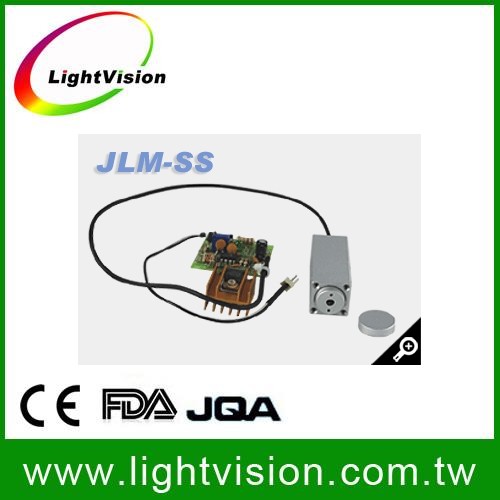

Industrial Laser Module JLM-SS

Product ID: Industrial Laser Module -JLM-SS

Send Inquiry
Model series:
JLM-SS

Output power:
1mW/ 5mW /10mW /20mW /30mW

Wavelength:
532nm

Dimensions of laser Head:
Square Type:50(L)x21x21mm

Output Mode:
CW

Power Stability:
<±10%

Output Noise(at 100Hz):
<5%

Beam Quality:
TEMoo

Operation Temperature:
15~35°C

Input Voltage:
5V±0.5VDC

Beam Divergence:
<1.2mrad

Operating Current:
<600mA

Warm Up Time:
<5Mins

Housing:
Aluminum

Expected Lifetime:
>3¸000 hrs
Specifications
  • Wavelenght: 532nm
  • Output Power: 1mW, 5mW, 10mW, 20mW, 30mW
  • Input Voltage: 5V+/-0.5VDC
  • Beam Quality: TEM00
  • Output Mode: CW
  • Operation Temp.: 15~35°C
  • Operating Current:

Main Products

Laser Laser Module, Industrial Laser Module and System, Laser Pointer, Computer Peripheral, Entertainment, ODM Laser Module, LED Light
