AT-20E(FG)SS

Product ID:

Send Inquiry

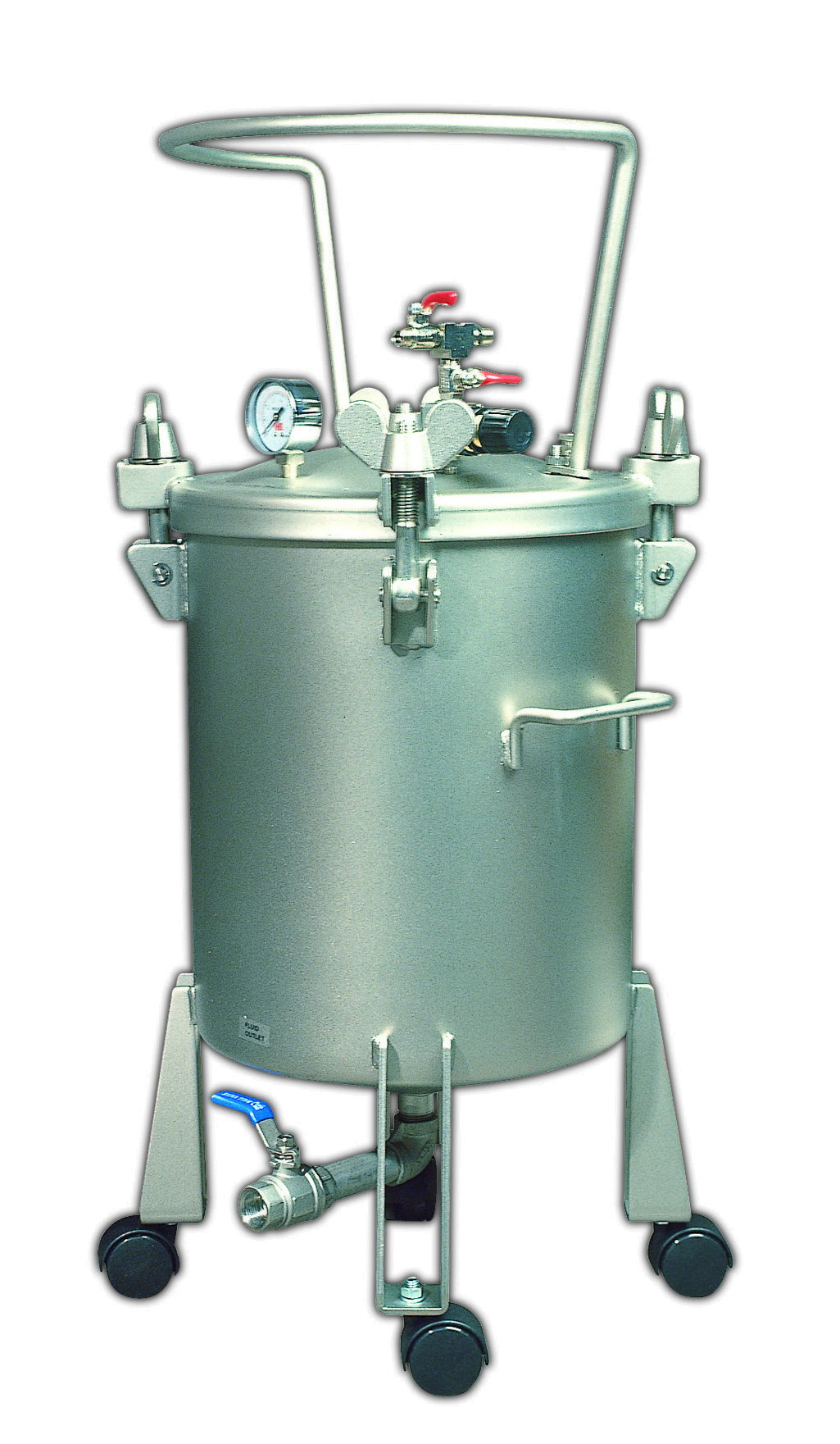

Stainless Steel Pressure Pots (Pressure Tanks)

1. Material : Stainless Steel

2. Capacity : Stainless Steel : from 2 litre to 120 litre.

3. Max. working pressure : 2.4 Bar , 3.4 Bar , 4.1 Bar , 7 Bar

4. Two kinds of fluid outlets are available ( Top or Bottom ) . Bottom fluid outlet is recommended for heavy viscous materials.

5. Pressure tanks is equipped with air agitator or manual agitator.

6. A fluid level displaying tube or show window is available for your choice.

7. We also provide customized design.

Features
1. Pot body is one-piece formed of high-quality Stainless Steel. 2. Capacity  20 litre 3. Max. working pressure : 4.1 Bar / 60 PSI 4. Bottom fluid outlet is recommended for heavy viscous materials.     Applied for :  1. Waterborne fluids like paints, adhesives, etc. 2. Glue 3. High-viscosity fluids. 4. Acid fluids, alkaline fluids and other chemical fluids. 5. General paints adding with solvent.



Capacity

Tank Lid

Tank Body

LITRE

T

I.D.

O.D.

T

H

I.D.

O.D.

20L

 5mm

 334mm

344mm

 2.0mm

532mm

317mm

 327mm



Measurement

Packing

L

W

H

N.W.

G.W.

CUFT

410

325

840

 20.4 kg

22.3kg

4.5'
