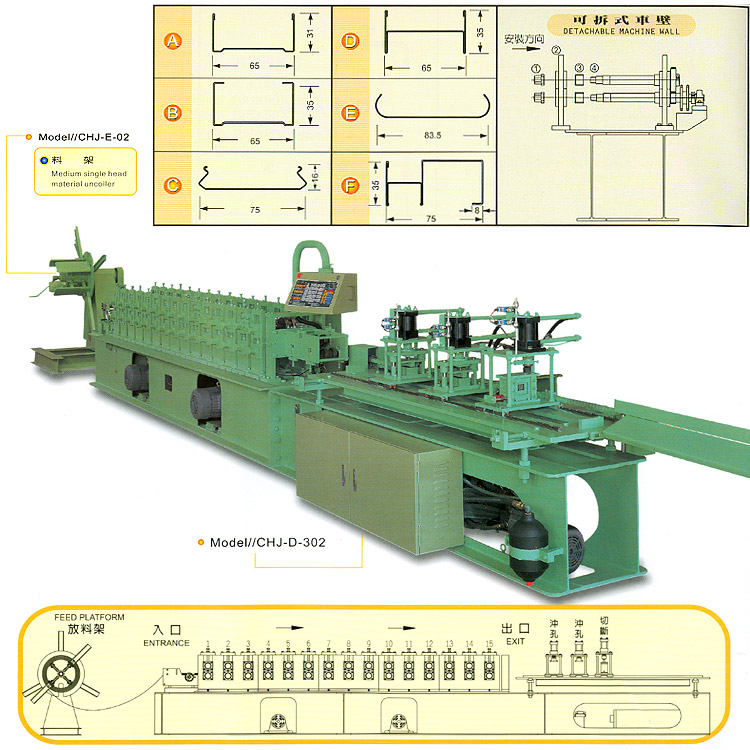

Forming Machine, Separable

Product ID: CHJ-D-302

Send Inquiry
This separable forming machine is suitable for products in one shape but with different sizes. One side of the machine is fixed and other side can be separated. It is easy to disassemble and assemble and will save machining cost for products in small quantity but in various shapes, suitable for room division, column and upper-and lower trough. It's really a forming machine of cost-saving and manpower-saving.
Sheet Thickness 0.3 ~ 1.6mm
Forming Speed 20 ~ 35 PER Minute
Roller Shaft Dia Dia.50 ~ 70mm
Roller Stations Up / Down 12 ~ 25
Motor Output 7.5 ~ 20hp
Length x Width L 6 ~ 12MW 1 ~ 1.6M
Single Head Uncoiler 2 ~ 3.5 Ton
