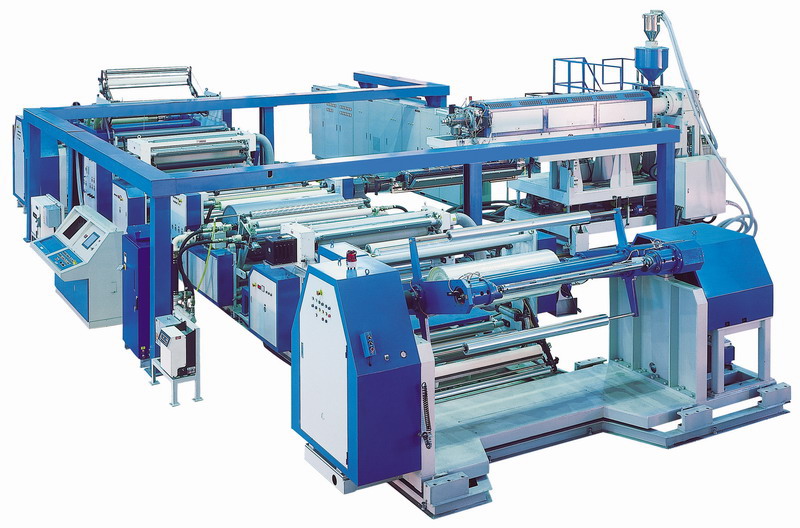

Extrusion System Lamination Machine

Extrusion System Lamination Machine

Click here for details.

Extrusion System Lamination Machine

Product ID: LA-FP Series

Send Inquiry

FKI offers the most advanced and adaptable extrusion system lamination machines for various applications, such as for flexible packaging films like: BOPP, BOPET, CPP Nylon and Aluminum foil, or for craft paper, release paper, tissue paper, cardboard paper, woven fabric, etc. The workable coating materials that can be extruded are LDPE, PP PEVA, EVA and Surlyn, etc.
LA-FP series are mainly designed for working on all kinds of flexible packaging films, such as: BOPP, BOPET, CPP, Aluminum foil, metallized films, nylon and etc.

Specification:


Extruder: O125mm, L/D=32:1
Extrusion output: 450 kg/hr for PE
Working line speed: 300 M/min.
Substrates width: 1,600mm
Max. winding diameter: 1,000mm
Standard Parts:
125mm extruder with 200HP DC motor or AC vector inverter.
-Ceramic heater for barrel heating.
-Gear box imported from Europe; with SKF thrust bearing.
-Extruder forward, backward and height adjustable by motor.
-Temperature controller of PID display with SSR output.
-Melt pressure and thermo gauge, Dynisco brand.
-Melt pressure adjustable adaptor.
-Tube type manual system screen changer.
-Aluminum heater for T-die.
-In feed unit before the unwinder and lamination unitl Japan made EPC for unwinder.
-Unwinder with director drive controll Main cooling roller of 800mm diameter.
-Cooling rollers with fast changeover joint.
-Prime anchor coater with 2,200mm x 2 heating length.
-Powder spray for winder.
-Air shafts for both unwinder and winder.
-Bottom cutter for unwinder & winder.
-Auto loader and hopper dryer.
-Total PLC control system with 10" touch screen color monitor.
Optional device:
-Hydraulic screen changer.
-Automatic T-die with gauge control system.
-Top cutter for unwinder and winder.
-Corona surface treater.
-Water chiller.
-Extra cooling roller of mirror finished or semi mat surface.
-Extra silicon rubber roller.
-Air conditioner for control panel.
-Other special accessories.
