SWING MOTOR
Click here for details.

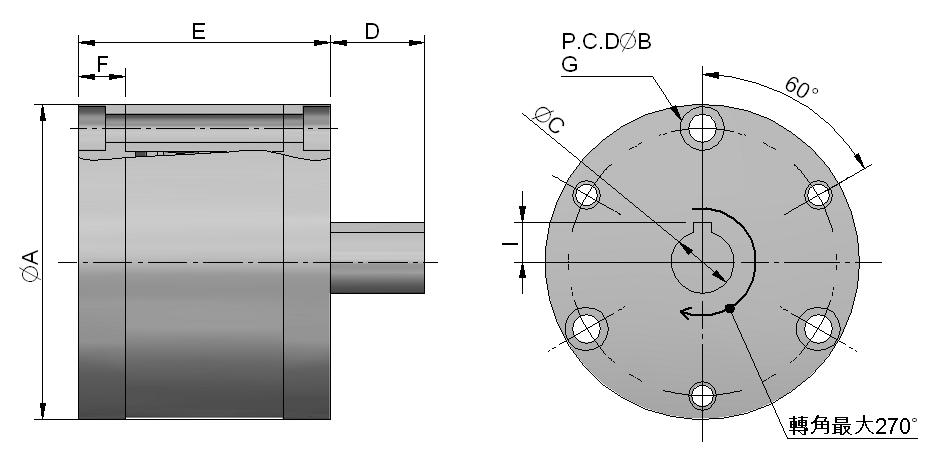

DIMENSIONS m/m
Model | A | B | C | D | E | F | G |
---|---|---|---|---|---|---|---|
SM60 | 88 | 65 | 30 | 25 | 95 | 15 | 3-M10 |
SM100 | 145 | 105 | 35 | 25 | 137 | 17 | 3-M12 |
SM150 | 210 | 155 | 50 | 30 | 148 | 18 | 3-M16 |
SM200 | 270 | 205 | 55 | 35 | 148 | 18 | 6-M20 |
SM250 | 320 | 255 | 60 | 40 | 172 | 22 | 6-M22 |
SM300 | 410 | 305 | 80 | 50 | 180 | 30 | 6-M30 |
Features
- Motive by hydraulic or pneumatic.
- Swing angles-90°,180° and 270°.
- Big swing force.
- Swing in accurately position.
- Easy to combine.
