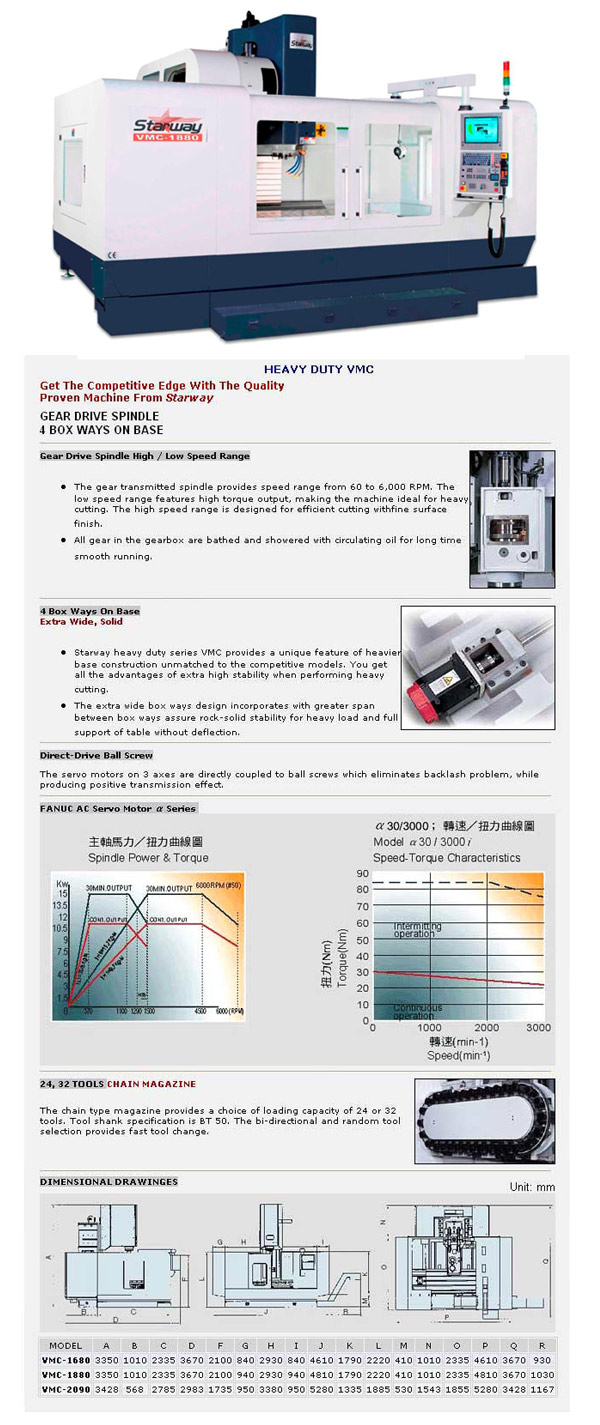

VMC-1680, X, Y, Z-axis travel 1,600 x 800 x 700mm, table size is 1,800 x 750mm, floor space required (L x W x H) is 3,670 x 4,610 x 3,550mm, the machine net weight is 14,000kgs.
VMC-1880, X, Y, Z-axis travel 1,800 x 850 x 700mm, table size is 1,960 x 750mm, floor space required (L x W x H) is 3,670 x 4,810 x 3,550mm, the machine net weight is 16,000kgs.
VMC-1880, X, Y, Z-axis travel 1,800 x 850 x 700mm, table size is 1,960 x 750mm, floor space required (L x W x H) is 3,670 x 4,810 x 3,550mm, the machine net weight is 16,000kgs.
Features
- Two-speed gearbox for powerful transmission for spindle.
- Extra large 4 box ways on base.
- Semi-enclosed guard.
- 24-tool arm type magazine (standard).
- 32-tool chain type magazine (optional).
- Meehanite cast iron for all structural parts.
- BT 50 spindle taper.
- Patented oil skimmer.
- Integrated screw type chip conveyors.
- Standard accessories
- Semi-enclosed guard.
- Cutting coolant unit.
- Heat exchanger in control box.
- Auto power off.
- Auto lubrication system.
- Air blast through spindle.
- Controller (FANUC).
- Leveling bolts and blocks.
- Work lamp.
- 3 color light.
- Tool box.
- Arm type ATC (24 tools).
- Rigid tapping.
- Spindle oil cooler unit.
- Screw type chip conveyor.
- Operation manual & electric drawing equipment.
- Remote manual pulse generator.
- Patented oil skimmer.
- Direct-drive gear box.
- Optional accessories
- Full splash guard.
- Armless (Umbrella) type ATC (16 tools).
- Transformer.
- CE regulation.
- Coolant thru spindle (CTS).
- Coolant thru ballscrew (CTB).
- Adding 4th axis interface.
- Built-in CNC rotary table.
- Controller (Mitsubishi).
- Controller (Siemens Series).
- Spindle 10,000RPM.
- Linear scale.
- Oil mist unit.
- Oil skimmer.
- Patented oil skimmer.
- Chain type ATC (32 tools).
- Link type chip conveyor and buket.
- Tool length measurement system.
- Workpiece measurement system.
| Item | VMC-1680 | VMC-1880 |
|---|---|---|
| Travel | ||
| X-axis | 1,600mm | 1,800mm |
| Y-axis | 800mm | 850mm |
| Z-axis | 700mm | 700mm |
| Spindle nose to table | 200~900mm | 250~950mm |
| Spindle center to column | 850mm | 850mm |
| Feed rate | ||
| X. Y. Z. axis rapid traverse | 15,000mm / min | 10,000mm / min |
| Cutting feedrate | 10,000mm / min | 10,000mm / min |
| Table | ||
| Table size | 1,800 x 750mm | 1,960 x 750mm |
| Max. loading capacity | 2,000kgs | 2,300kgs |
| Slideway design on Y axis | 4 square slideways | 4 square slideways |
| Size of T-slots | 22 x 5 x 150mm | 22 x 5 x 150mm |
| Spindle | ||
| Spindle speed | 4,000RPM & 6,000RPM (opt.) | 4,000RPM & 6,000RPM (opt.) |
| Spindle taper | BT50 / BT40 (opt.) | BT50 |
| Transmission | 2-speed geared head / belt drive (opt.) | 2-speed geared head |
| Motor | ||
| Spindle motor | 18.5kw / 25HP | 18.5kw / 25HP |
| X, Y, Z, axis motor | 7kw | 7kw |
| ATC | ||
| Tool magazine capacity | 24 / 32 | 24 / 32 |
| Max. tool weight | 15kgs | 15kgs |
| Max. tool size (dia. x length) | Ø110 x 300Lmm | Ø110 x 300Lmm |
| Tool shank | BT50 / BT40 (opt.) | BT50 |
| General information | ||
| Machine net weight | 14,000kgs | 16,000kgs |
| Floor space required (L x W x H) | 3,670 x 4,610 x 3,550mm | 3,670 x 4,810 x 3,550mm |
| Shipment advice | Flat rack container | Flat rack container |
