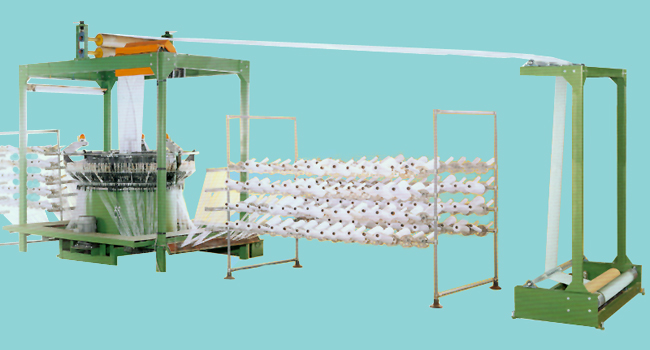

YC4/800H is designed to weave super narrow tubular weaving bags with the width from 400mm to 800mm. Shuttle speed range is 140-180 RPM.
Machine Features
The machine has low vibration and low part consumption. The machine is designed with wrap tension regulation system to allow even weft insertion.
Sensor detection device on machine can stop machine automatically for warp leakage and no-weft fault. It is not affected by yarn dust. The result is the production of beautiful and even fabric. Furthermore, the machine is easy to operate and maintain.
Machine Features
The machine has low vibration and low part consumption. The machine is designed with wrap tension regulation system to allow even weft insertion.
Sensor detection device on machine can stop machine automatically for warp leakage and no-weft fault. It is not affected by yarn dust. The result is the production of beautiful and even fabric. Furthermore, the machine is easy to operate and maintain.
| Working Ability: Shuttle Speed | 140-180 RPM |
|---|---|
| Working Ability: Nos. of Shuttle | 4 Set |
| Working Ability: Weft Inserting Speed | 560-720 RPM |
| Working Ability: Weft Density | 8-16 P/Inch |
| Working Ability: Lay Flat Width | 400-800mm |
| Yarn Package Standard PP/PE Flat Type Yarn: Weft Tube | ID (23-38)φ mm |
| Yarn Package Standard PP/PE Flat Type Yarn: Maximum Weft Package | φ100 mm |
| Yarn Package Standard PP/PE Flat Type Yarn: Warp Tube | ID (23-38)φ mm |
| Yarn Package Standard PP/PE Flat Type Yarn: Warp Creel | 720 bobbin |
| Cloth Winder (Two-roll surface winding): Maximum Winder Roller Width | 1,600mm |
| Cloth Winder (Two-roll surface winding): Torque Motor | 10kg-cm |
| Power: Main Motor 3P | 3.5 (5HP x 4P, Y-∼) |
| Power: Fan Motor 3P | 1/4HP |
| Layout & Packing: Layout Space | L 9.8 x W 2.25 x H 2.9m |
| Layout & Packing: Packing G.W. | 2,300 kg |
