Jouning Blower Co., Ltd

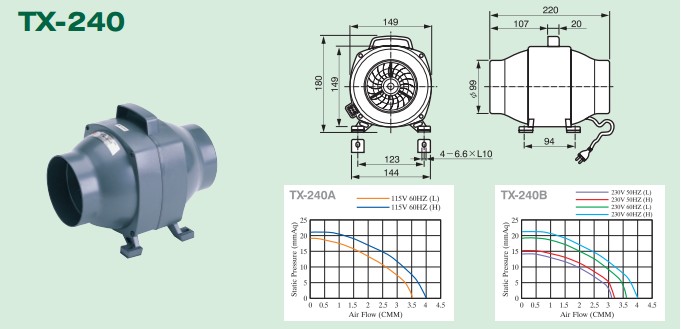

The in-line turbo fan from Jouning is an inline mix flow fan combining the features of centrifugal and axial fans. It is normally used for both supply and exhaust ducted applications requiring powerful airflow, high pressure and low noise level. The ideal solutions of inline turbo fans are usually installed in residential, commercial ventilation and other premises. If you are interested in our inline fans series, check out our website at www.jouning-blower.com/series6.html for more details!
| Model | Voltage | Frequency | Phase | Poles | Speed | Current | Input | Static Pressure |
Air Flow | Capacitor | Sound Leve | Net Weight |
| V | Hz | ψ | P | RPM | A | W | mm/Aq | m³/min | VAC/µf | dB(A) | Kg | |
| TX-240A | 115 | 60 | 1 | 2 | 2860(L) | 0.38 | 40 | 19 | 3.5 | 54.5 | 1.7 | |
| TX-240A | 115 | 60 | 1 | 2 | 3380(H) | 0.54 | 55 | 21 | 4.0 | 58.5 | 1.7 | |
| TX-240B | 230 | 50 | 1 | 2 | 2700(L) | 0.17 | 35 | 14 | 3.4 | 53.5 | 1.7 | |
| TX-240B | 230 | 60 | 1 | 2 | 3020(L) | 0.19 | 40 | 19 | 3.6 | 55.5 | 1.7 | |
| TX-240B | 230 | 50 | 1 | 2 | 2880(H) | 0.32 | 52 | 15 | 3.2 | 54.5 | 1.7 | |
| TX-240B | 230 | 60 | 1 | 2 | 3380(H) | 0.27 | 55 | 21 | 4.0 | 58.5 | 1.7 |
Minimum Order: Negotiable TEL: 886-2-2268-3215 / 2268-3217 FAX: 886-2-2268-3219
