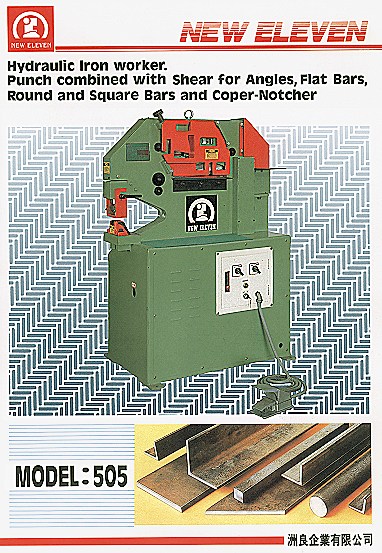

Punch combined with shear for angles, flat bars, round and square bars and coper-notcher.
| Model | HIW-400 | 505 | 805 |
|---|---|---|---|
| Plate shear | 3/8" x 14" (10 x 355 mm) | 1/2" x 14" (12 x 355 mm) | 1/2" x 19-3/4" (12 x 500 mm) |
| Plate shear | 1/2" x 10" (12 x 254 mm) | 5/8" x 12" (16 x 305 mm) | 3/4" x 12" (19 x 305 mm) |
| Angle shear (angle 90°) | 3" x 3" x 5/46" (75 x 75 x 8 mm) | 4" x 4" x 1/2" (100 x 100 x 12.7 mm) | 6" x 6" x 1/2" (150 x 150 x 12 mm) |
| Angle shear (angle 45°) | 2" x 2" x 5/16" (50 x 50 x 8 mm) | 2-1/2" x 2-1/2" x 3/8" (64 x 64 x 9 mm) | 3-5/8" x 3-5/8" x 1/2" (92 x 92 x 12 mm) |
| Channel shear (optional equipment) | 3" (75 mm) | 4" (100 mm) | 5" (125 mm) |
| Bar shear (round bars) | - | 1-1/4" (32 mm) | 2" (50 mm) |
| Bar shear (square bars) | - | 1-1/4" (32 mm) | 1-3/4" (45mm) |
| Coper-notcher with rectangular coping tool.plates | - | 3/8" (10 mm) | 1/2" (12 mm) |
| Coping width | - | 2" (50mm) | 2-3/4" (70 mm) |
| Coping depth | - | 3-1/2" (90 mm) | 4" (100 mm) |
| Triangular notching with triangular notching tool.plates | - | 3/8" (10 mm) | 1/2" (12 mm) |
| Coping depth (optional equipment) | - | 3" x 3" (75 x 75 mm) | 4" x 4" (100 x 100 mm) |
| Punch (pressure) | 40 Tons | 55 Tons | 85 Tons |
| Maximum diameter | 7/8" (22 mm) | 1-1/4" (32 mm) | 1-1/4" (32 mm) |
| Maximum thickness | 1/2" (12 mm) | 19/32" (15 mm) | 13/16" (20 mm) |
| Number of strokes at 1/2" (12 mm) stroke length per min | 35 | 32 | 30 |
| General specifications: number of strokes at full stroke per min | 14 | 7 | 5 |
| Depth of throat | 6" (150 mm) | 10-5/8" (270 mm) | 20" (508 mm) |
| Motor (voltage: 220/380/415/440/575) | 3 HP (60 Hz) | 5 HP (60 Hz) | 10 HP (60 Hz) |
| Dimensions of machine (L x W x H) | 50" x 26" x 53" (1,270 x 660 x 1,346 mm) | 41" x 26" x 59" (1,042 x 660 x 1,498 mm) | 76-1/4" x 40-1/2" x 74-3/4" (1,936 x 1,030 x 1,895 mm) |
| Net weight of machines (Apr.) | 1,130 lbs (515 kgs) | 2,112 lbs (960 kgs) | 4,454 lbs (2,025 kgs) |
| Gross weight of machine (Apr.) | 1,364 lbs (620 kgs) | 2,310 lbs (1,050 kgs) | 5,126 lbs (2,330 kgs) |
| Dimension of case (L x W x H) | 51" x 30" x 63" (1,300 x 762 x 1,600 mm) | 42" x 30" x 61" (1,066 x 762 x 1,550 mm) | 79" x 43-5/16" x 80-1/2" (2,006 x 1,100 x 2,045 mm) |
