Conventional Horizontal Boring & Milling Machine

Conventional Horizontal Boring & Milling Machine

Click here for details.

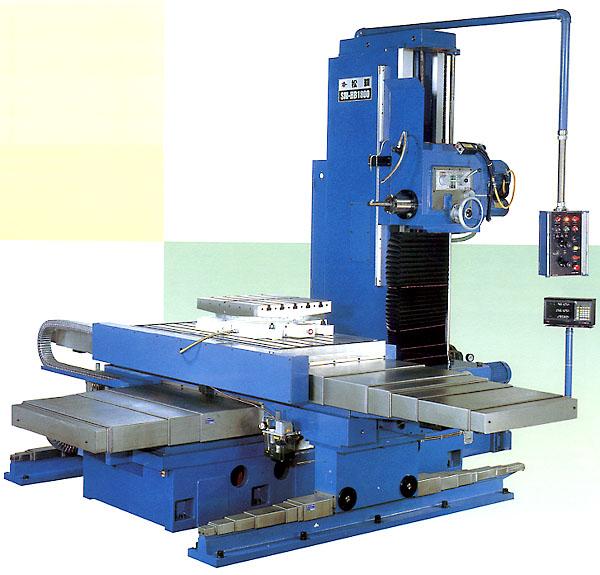

Conventional Horizontal Boring & Milling Machine

Product ID: SM-HB1800

Send Inquiry
High Accuracy:
This machine adopts high class FC30 cast iron & high intensity of alloy steel parts, precise gear, and "SANCO" particular manufacturing technology to achieve the best standard in accuracy, intensity, and high progressing application.
High Operation:
X.Y.Z.-axis adopts oil pressure clamping system developed by our company, matching good electricity operation, locking any one axis or three axes at a very short time, to achieve the effects of fastness, accuracy, labor-saving while progressing; then the good oil pressure providing system matches this locking system to function more perfection.
Specifications
  • Travels: 1,800 x 1,400 x 1,200 mm
  • Table Size: 1,500 x 800 mm
  • Max. Loading: 2,000 kgs
  • Main Motor: 7.5KW x 4P (6P)
  • Spindle Taper: NT#50
Features
  • Index table 600 x 600 mm - 72D.
  • Air clamping device.
  • Pulse scale & device.
  • Hydraulic pump motor (1.5KW x 4P).
  • Coolant pump motor (0.7KW x 4P).

Main Products

Conventional Horizontal Boring, Milling Machine Centers, CNC Horizontal Boring, Milling Machine Centers, CNC Double Column Machining Centers
