16" Scroll Saw

Product ID: ST-SS160S / ST-SS160V

Send Inquiry
This newly designed scroll saw features various speeds. It permits for variable speed adjustment as desired to suit a wide range of materials. In addition to cut wood material, this model is also suitable for cutting aluminum and plastic work pieces (Use lower speed when cutting aluminum and plastic work piece). The table tilts 0° ~ -45° for bevel cutting. The machine is equipped with a chip chute for connection to a dust collector. It has been patented in several countries. When requested, a single speed model is available.
Specifications

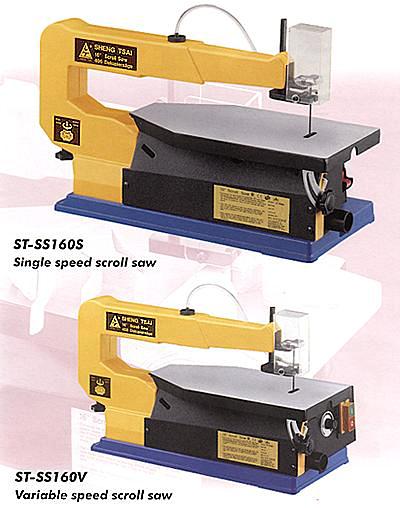

  • ST-SS160S (Single Speed Scroll Saw).
  • ST-SS160V (Variable Speeds Scroll Saw).
Features
.Sample Purchase.
H.P. of motor (160S) 50 HZ, 0.85 AMP / 60 HZ, 2 AMP (160V) 50 HZ, 0.7 to 0.8 AMP / 60 HZ, 1.6 AMP
Table 14.2" x 7.1" (360 x 180 mm) 14.2" x 7.1" (360 x 180 mm)
Table tilting L 45 deg L 45 deg
Blade speed (160S) 50 HZ, 1420 RPM / 60 HZ, 1720 RPM (160V) 50 HZ, 630 to 1300 RPM / 60 HZ 630 to 1600 RPM
Blade size 5" (127 mm) 5" (127 mm)
Overall height 11.34" (288 mm) 11.34" (288 mm)
Height from floor to table 6.7" (170 mm) 6.7" (170 mm)
Blade to frame 16" (406 mm) 16" (406 mm)
Net weight (160S) 12.5 kg (160V) 11.5 kg
Gross weight (160S) 14 kg (160V) 13 kg
Dimension of Package 555 x 290 x 320 mm (21.9" x 11.4" x 12.6") 555 x 290 x 320 mm (21.9" x 11.4" x 12.6")
Certificate
  • UL
  • CSA
  • CE
  • GS
  • EMC
  • LVD
  • MSD

Main Products

Wood Cutting Band Saw, Sander, Scroll Saw
