Specifications
- Equipped with advanced microprocessor thus offering excellent stability
- Offering MANUAL operation mode
- Offering AUTO operation mode
- Offering SINGLE MOTTON operation mode. (along with pedal switch for operation)
- Offering TIMER mode eabling operator to preset the time length for each process
- Press stroke 30mm
- Ajustable Press stroke 30mm
- Indexing Disk with either 6 or 12 equal divisions
- Indexing Disk Setting Accuacy tolerance +-0.02mm

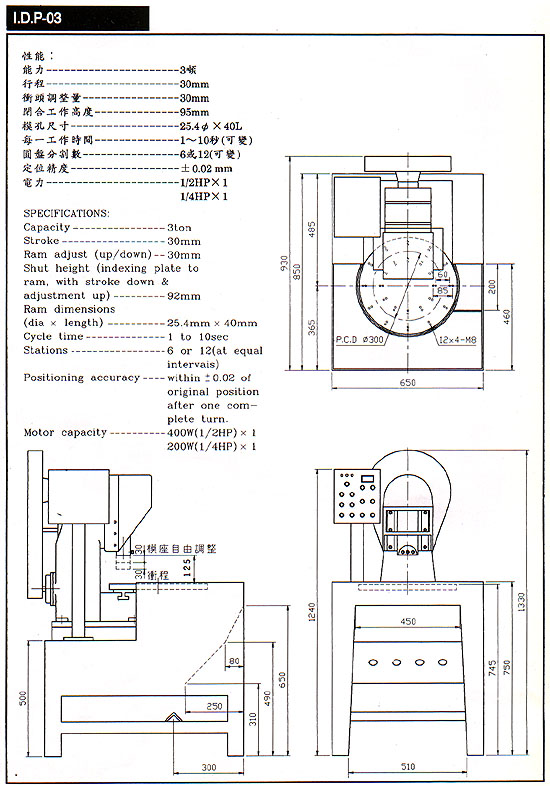

- Specifications and dimensions: ref, pictures shown in catalog attached
Features
- Compact, high precision, universal for various purposes
- Simple to operate and highly safety guaranted
- Fully compatible to automated peripheral equipment and capable of evoluting to a fully automated machine
- Equipped with repetitive punching prevention device thus offering higher safety
- Multiple operation modes available to meet needs and proven to be highly feasible
- Ideally suitable for riveting a plurality of parts, and assembling them
| Capacity | 3 ton |
|---|---|
| Stroke | 30mm |
| Ram adjust (up / down) | 30mm |
| Shut height (indexing plate to ram, with stroke down & adjustment up) | 95mm |
| Ram dimensions (dia x length) | 25.4dia x 40L |
| Cycle time | 1 to 10sec |
| Stations | 6 or 12 (at equal intervais) |
| Positioning accuracy | within +-0.02 of original position after one com-plete turn |
| Motor capacity | 400W (1/2HP) x 1, 200W (1/4HP) x 1 |
| Total Weight | 300kg |
| L x W x H(mm) | 930 x 650 x 1330 |
Main Products
1-ton, 3-ton, 5-ton, 8-ton, Disk Indexing Table Press
