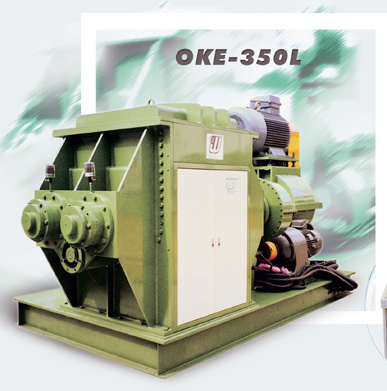

Open Kneader - OKE SERIES
We have developed open type kneading extruder with capacity up to 2500L. The msacine is equipped with single screw for direct discharging. The blades can be heavy-duty type blade design (Ex. Kneader Blade) or type blade design in order to fulfil the requirement of material blinding. The media used for heating or cooling could be water, steam, electric heating element, heting mrdia oil, etc. It is sub-divided sections for automatic thermostatic ontrol to have effects on stable quality and production increasing.
We have developed open type kneading extruder with capacity up to 2500L. The msacine is equipped with single screw for direct discharging. The blades can be heavy-duty type blade design (Ex. Kneader Blade) or type blade design in order to fulfil the requirement of material blinding. The media used for heating or cooling could be water, steam, electric heating element, heting mrdia oil, etc. It is sub-divided sections for automatic thermostatic ontrol to have effects on stable quality and production increasing.
| MODEL | OKE-20L | OKE-100L | OKE-350L | OKE-750L | OKE-1000L | OKE-2000L |
|---|---|---|---|---|---|---|
| Kneader Motor | 10HP | 30HP | 100HP | 150HP | 200HP | 400HP |
| Single Screw Motor | 5HP | 10HP | 25HP | 30HP | 40HP | 50HP |
| Single Screw Diameter | 100 (m/m) | 150 (m/m) | 255 (m/m) | 300 (m/m) | 400 (m/m) | 500 (m/m) |
| Cooling or Heating System | 1HP | 3HP | 5HP | 7.5HP | 10HP | 20HP |
| Bilnding Capacity | 20L | 100L | 350L | 750L | 1000L | 2000L |
| Full Capacity | 40L | 200L | 700L | 1500L | 2000L | 4000L |
| Net Weight | 2500 kg | 4200 kg | 8500 kg | 13000 kg | 20000 kg | 38000 kg |
