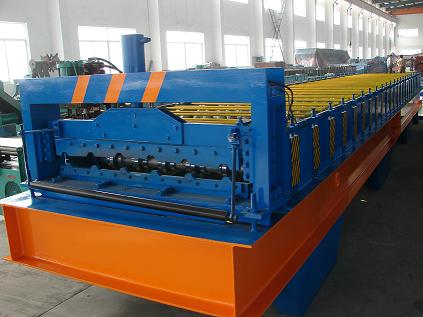

Corrugated sheet machine
roll forming machine, glazed roof tile forming machine, corrugated sheet forming mahcine, sandeich panel line, C/Z steel type
Product ID: roll forming machine
Send Inquiry
Roll forming machine adopt new station to increase the firmness of the machine; and the machine adopt gearbox transmission to ensure machine working more stable; Machine adopt after-cutting to ensure quality of the cutting position of product very smooth ; products are widely used in steel structure building
Specifications
- Glazed roof tile forming machine
- Steel tile roll forming machine adopts new station to increase the solidity of the machine; products are widely used in modern architecture roofing, the product increased the housing aesthetics.
- Corrugated sheet forming machine
- This kind of machine used in simple house , steel plants and other wall board production, speeds up to 30 m / min, greatly improve the production efficiency
- Material thickness: 0.4-0.8mm
- Working speed: 12-30m/min
- Roll station: 18 stations
- Main power: 5.5KW
- Hydraulic power: 3KW
- Control system: PLC Mitsubishi
- Drive: by chain
- Sandwich panel production line
- flat panel( wall) and corrugated panel(roof)
- C/Z steel type forming mahcine
- C purlin roll forming machine adopt new station to increase the firmness of the machine; and the machine adopt gearbox transmission to ensure machine working more stable; Machine adopt after-cutting to ensure quality of the cutting position of product very smooth ; products are widely used in steel structure building.
- 2.Main Technical Specification:
- thickness: 1.5-3.0mm
- speed: 15m/min (not include cutting and punching)
- roll station: 18 stations
- main power: 15KW
- hydraulic power: 5.5KW
- control system: PLC Mitsubishi
- Drive: by gear box
Certificate
- ISO 9001 & CE
