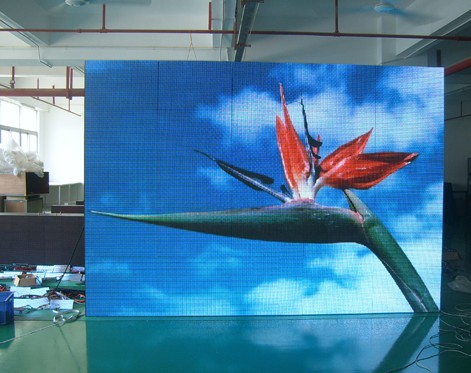

P6 1R1G1B Indoor LED Full Color Display Screen
Technical Parameters:
Item No./Model: PH6
Pixel Composition: 1R1G1B
Pixel Pitch: 6mm
Pixel Density:27777dots/m2
Brightness:1500cd/m2
Viewing Distance: ≥6m
View Angle: H:150°,V:150°
Gray Scale:4096
Display Card: DVI card
Control Mode: Synchronous
Drive Mode: Static constant current
Refresh Rage Rate: 600Hz
Working Temperature: -25℃-- +85℃(for working)
Working Humidity:10%-95%RH
Model Size:192*192mm
Cabinet Size:768*576mm
Cabinet Dimension:0.442 m2
Cabinet Weight:35KG
Cabinet Resolution:128dots*96dots
Cabinet Material:Steel/Aluminum
Brightness Adjusted by: by software(0-100 level adjustable)
Video Signal Input: RF,S-Video,RGB,RGBHV,YUV,YC,COMPOSITION and so on
Control System: PCTV ard(optaional)+DVI card+master control card+ optical transmitter(optional)
MTTF: ≥10000 hours
Lifespan:10000 hours
