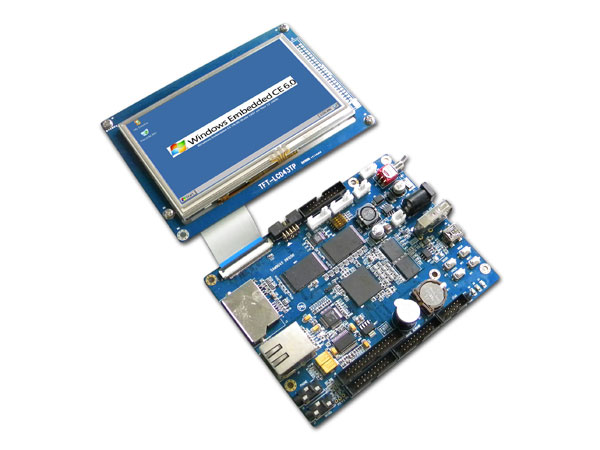

Atmel SAM9G45 ARM9 Board

Atmel SAM9G45 ARM9 Board

ATMEL SAM9G45 ARM9 Eval Board

Product ID: A9G4

Send Inquiry
The ATMEL SAM9G45 Board produced by Embest is a full-featured evaluation board based on the ATMEL' new processor – AT91SAM9G45 which runs at up to 400MHz, with 128 Mbytes DDR2 memory and 256 Mbytes SLC NAND Flash. The board provides a wide range of peripherals, including a high-speed USB host/device port, an Ethernet 10/100 interface, two high-speed SD/MMC slots and a QVGA 320x240 LCD panel with Resistive touch screen. In addition, the board supports Linux, WinCE and Android OS and offers plenty of example applications under these three OS, makes engineers easy to develop their project based on this AT91SAM9G45 processor. For more information about this SAM9G45 Eval Board, please refer to: http://www.embedinfo.com/en/list.asp?id=72.
Specifications
  • Embedded OS
    • Support Linux2.6 and WinCE6.0 OS, with free relevant board support packages (BSPs)
  • LCD Panel Provided
    • one 4.3" QVGA 480x272 LCD panel with Resistive touch screen
  • CPU
    • Atmel AT91SAM9G45 (ARM926EJ-S Core), 400MHz
  • Memories
    • 256MBNandFlash, 2MB NorFlash, 4MB DataFlash & two 64MB DDR2 SDRAM
  • Plenty of peripherals and connector
    • - Four UART interfaces
  • - One high-speed USB Host Port
  • - One high-speed Host Device Port
  • - One JTAG Debug Interface
  • - One 10/100 Ethernet interface
  • - One SD/MMC card interface
  • - One Micro SD card interface
  • - One IIS Audio output port
  • - One IIS Audio input port
  • - Two User buttons
  • - One Wake-up button
  • - One Reset button
  • - One User LED
  • - One Power LED
  • - 60 I/O Pins User Extension Interface
