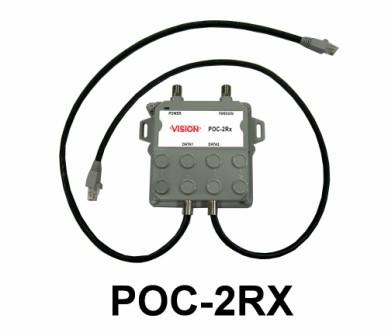

Ethernet+Power over Coax Receiver

Product ID: POC-2RX

Send Inquiry
POC-2RX can divide data and power in the remote side. Two Ethernet data and 12V DC outputs allow user to connect and power to two CCTV systems (IP cameras).
Specifications
  • Interface
    • 2 RJ-45 male connectors (OUT)
  • 1 F female connector (OUT)
  • 1 F female connector (IN)
  • Using Coaxial cable
    • Electrical
      • IEEE 802.3 10Base-T
    • IEEE 802.3u 100Base-TX
    • 10/100Mbps for full duplexer
    • >=300m 5c or RG-60 coaxial cable
    • Frequency Allocation 0~125MHz
      • Power -----
        • Power over Coax Cable
      • Input Operating Voltage 18~60VDC@Power +Data port
      • Output Voltage 12 VDC @ Power port
      • Remote Powering ability 14.4W (12 VDC, 1.2A)
      • Power consumption
