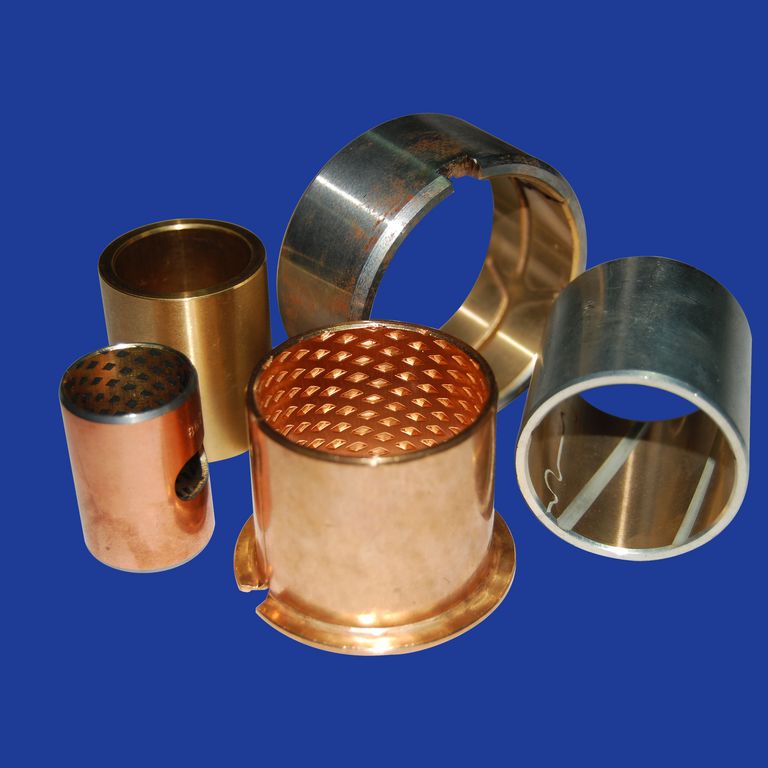

Bimetal bushes,Plain bearings

Product ID: Bimetal bushes

Send Inquiry
These bushings have the type of SF-1, SF-2, FB090, FB08G, JF-800, FU and so on. These bushings are widely applied in many positions. Just as auto, agriculture, hydraulic vehicles, forging machines, construction machines and so on. These bushings are very good at saving cost material. We can make all sizes and types, also by clients requests. Please check the detail specification through one by one of other separate product.
Specifications
  • FU Bushes
    • The specification of the FU bushes as follows:
  • Load capacity: 120N/mm²
  • Shrink Fit: -100oC-+200'C
  • Speed limit: 2.5M/s
  • Friction coef: CuSn6-6-3
  • PV limit: 2.45N/mm2. M/s
    • JF-800 Bimetal Bushes
      • The specification of this JF-800 Bimetal bushes as follows:
    • Lead bronze alloy: CuPb10Sn10
    • Load capacity: 65N/mm2
    • Temperature max: 260
    • Friction clef: 70-100 HB
      • Flange Bushes
        • The specification of the flange bushes as follows:
      • Base material: CuSn8P0.3
      • Hardness: HB90-120
      • Load capacity: 150N/mm2
      • Temperature limit: -100oC-+120oC
      • Speed limit: 2.5N/mm2. M/s
      • PV limit (oil): 26N/ mm2. M/s
        • Bimetal Bushes
          • The specification of this bimetal bushes as follows:
        • Lead bronze alloy: CuPb10Sn10
        • Load capacity: 65N/mm2
        • Temperature max: 260
        • Friction clef: 70-100 HB
          • Auto Bushes
            • The specification of the bushes as follows:
          • Lead bronze alloy: CuPb10Sn10
          • Load capacity: 65N/mm²
          • Temperature max: 260'C
          • Friction clef: (70-100)HB
Features
  • Flange Bushes
    • The specification of the flange bushes as follows:
  • Base material: CuSn8P0.3
  • Hardness: HB90-120
  • Load capacity: 150N/mm2
  • Temperature limit: -100oC-+120oC
  • Speed limit: 2.5N/mm2. M/s
  • PV limit (oil): 26N/ mm2. M/s
    • Bimetal Bushes
      • The specification of this bimetal bushes as follows:
    • Lead bronze alloy: CuPb10Sn10
    • Load capacity: 65N/mm2
    • Temperature max: 260
    • Friction clef: 70-100 HB
      • Auto Bushes
        • The specification of the bushes as follows:
      • Lead bronze alloy: CuPb10Sn10
      • Load capacity: 65N/mm²
      • Temperature max: 260'C
      • Friction clef: (70-100)HB
        • JF-800 Bimetal Bushes
          • The specification of this JF-800 Bimetal bushes as follows:
        • Lead bronze alloy: CuPb10Sn10
        • Load capacity: 65N/mm2
        • Temperature max: 260
        • Friction clef: 70-100 HB
          • FU Bushes
            • The specification of the FU bushes as follows:
          • Load capacity: 120N/mm²
          • Shrink Fit: -100oC-+200'C
          • Speed limit: 2.5M/s
          • Friction coef: CuSn6-6-3
          • PV limit: 2.45N/mm2. M/s
Certificate
  • ISO

Main Products

Bimetal bushes,bushings,slide bearings,self-lubricant bushings,liners
