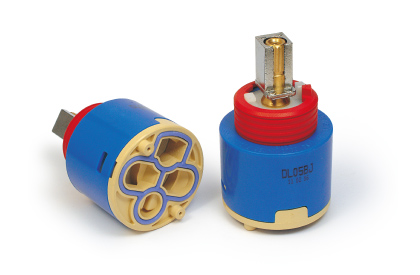

single lever cartridge for faucet
1: Φ40mm single lever ceramic mixer cartridge without distributor (back to back 180? reversee)
2: CSA、NSF、WRAS、Water Mark、ACS and KTW certification
3: Hain-Yo is specialized in ceramic cartridge since 1990. We could produce according to customers' pictures or designed drawings.
Characters:
Parameter
Nut lock torque :10~12 Nm
Max. Temperature: 90℃ (194℉)
Min. Temperature: 3.9℃ (39℉)
Recommended Temp: 3.9℃~82℃(39℉~180℉)
Ceramic disc parameter
Ceramic disc by dry pressing :AL2O3 92%~96%
Hardness :1000 HV
Surface Roughness: Ra0.1~Ra0.3μm
Flatness: <0.6μM
Performance test
Operating Torque
Testing Condition:Water Pressure is Static
Left and Right Rotation :0.4~0.5 Nm
Sealing test, Pressure Resistance(Max.):
Air Pressure :100PSI
Water Pressure : 500PSI
Flow Rate
Test Condition:Faucet without resistance
Water Pressure--------Mixing (L/min)
1bar--------------------12.2
2bar--------------------20.66
3bar--------------------26.68
Life Test :
ASME A112.18.1 : 500, 000cycles
EN817 : 70, 000cycles
Welcome of customer's design and sample, we will offer you products with high quality and competitive price.
2: CSA、NSF、WRAS、Water Mark、ACS and KTW certification
3: Hain-Yo is specialized in ceramic cartridge since 1990. We could produce according to customers' pictures or designed drawings.
Characters:
Parameter
Nut lock torque :10~12 Nm
Max. Temperature: 90℃ (194℉)
Min. Temperature: 3.9℃ (39℉)
Recommended Temp: 3.9℃~82℃(39℉~180℉)
Ceramic disc parameter
Ceramic disc by dry pressing :AL2O3 92%~96%
Hardness :1000 HV
Surface Roughness: Ra0.1~Ra0.3μm
Flatness: <0.6μM
Performance test
Operating Torque
Testing Condition:Water Pressure is Static
Left and Right Rotation :0.4~0.5 Nm
Sealing test, Pressure Resistance(Max.):
Air Pressure :100PSI
Water Pressure : 500PSI
Flow Rate
Test Condition:Faucet without resistance
Water Pressure--------Mixing (L/min)
1bar--------------------12.2
2bar--------------------20.66
3bar--------------------26.68
Life Test :
ASME A112.18.1 : 500, 000cycles
EN817 : 70, 000cycles
Welcome of customer's design and sample, we will offer you products with high quality and competitive price.
