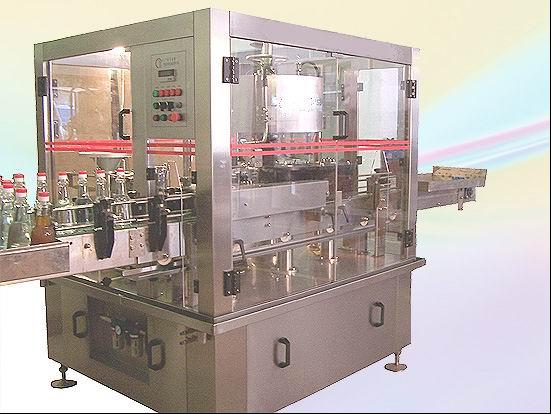

SH-9S OPP hot-melt adhesive label affixing machine

Product ID: labelling machine

Send Inquiry
The machine for Making OPP hot-melt adhesive labels and adhering them bottles, drums and other containers,vessels, especially applied to packaging industry.
Features:
1 A rotary label affixing MACHINE, frequency and speed control;
2 Precut to shape the label or tag in advance(OPP plastic pater needs destatic like NongFu spring using coated art paper protected by a layer of film ), the gum is sprayed out or scraped out; Label is scrolled.
3 Speed: 6000/8000 bottles/hour (Enough rigidness and roundness are required)
4 OPP hot-melt adhesive system is from Nordson (USA)
Specifications
  • Technical parameter
    • 1、Rated speed 6000~8000bottles/hour
  • 2、Direction forward
  • 3、size(Length × width × height)mm 2300×2025×2100
  • 4、Net wight(ton) 2.3
  • 5、Pressing-bottle-head number 9
  • 6、Gross power 4KW
  • 7、Gum supplier 1
  • 8、Conveyer height 1100mm
  • 9、Conveyer length 2000mm
  • 10、affixing area All around the body
  • 11、Labelled container's diameter ¢40~¢100mm
  • 12、Specification of conveyer's flat-top-chain 38.1×82
  • 13、external connecting power source requires: ≤1.1KW
  • 14、Affixing way OPP hot-melt adhesive
