rackmount LCD industrial workstations

Product ID: IEC-857

Send Inquiry

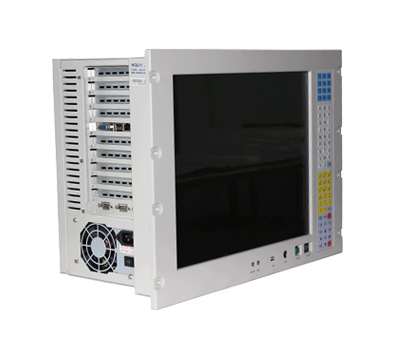

IEC-857 is a 8U Rackmount 17" TFT LCD All In One Workstation with the standard features: 19" Compact 8U height Rackmount workstation, Front 17" SVGA TFT LCD display Support 1280x1024 pixels,

350 cd/m2 brightness, Built-in 72-keys slim keyboard and Touchpad drawer, Shock-resistant drive bays to hold 1x 5.25" and 2x 3.5" drives, Aluminium magnesium Alloy front panel,

Heavy duty steel chassis, USB & PS/2 Accessible and power switch in the front panel, Support 10/8 slots PCI/ISA Backplane and full size sbc/ half size sbc, Power & HDD status

indicator by front viewable LED indicator.

Also, Holl as a industrial lcd workstation manufacturer provides 4u~8u height rack mountindustrial workstation, their lcd size from 8~ 17 inches. and we offer OEM/ODM services.

please contact us for the e-catalog and price list of the lcd workstation, we are very glad to service and cooperate with you.
Specifications
  • System
    • Disk Driver Bay
  • 5.25" x1 , 3.5" x2
  • Cooling Fan 1 x 9025mm swap cooling fan in front panel for input wind, with air filter and Moistureproof design
  • Keyboard Built-in 72-keys slim keyboard and touch pad.
  • I/O Connector Front panel: 1xUSB2.0,PS/2
  • Rear panel: 1xVGA, 1xPS/2
  • LED indicators & Switch
  • Power LED indicator(Green), HDD LED indicator(Red), ATX Power Switch(AT Switch Optional)
    • Construction
      • Compact 19" 1u Rackmount Heavy-Duty Steel Chassis, NEMA4/IP65 compliant front panel
    • Color white
      • LCD Panel
        • Display type 17" TFT LCD
      • Resolution 1280x1024
      • Colors 16M
      • Backlight 2xCCFL
      • Luminance 300 cd/m2
      • Contrast Ratio 700:1
      • View angle 160°(H) , 140°(V)
      • LCD MBTF 50,000hrs
        • Touchscreen
          • Type Resistive Touchscreen
        • Resolution 4096x4096
        • Controller Interface Internal USB ( RS-232 interface option)
        • Light Transmission 81% or more
        • Operating Force ≤250g
        • Life Expectancy 10 Millions
Features
  • Environmental Specifications
    • Oprerating Tempreture 0 °C to 60 °C
  • Storage Humidity 5% to 95%@ 40°C , on-condensing
  • Vibration 5-17Hz/1mm amplitude, 17-640Hz/1.5g acceleration
  • Shock 10G peak acceleration (11 msec. duration)
  • Safty FCC/VDE(Level A)
  • MBTF >50,000 hrs
    • Packing info
      • Dimensions(WxHxD) 483x354x251.2 mm
    • Packing Dimension 680x460x540 mm
    • NET weight 21 KG
    • Exporting packing Screws x1 bag, VGA cable x1, User manual x1,Warranty card x1, Certificatex1, PS/2 cable x2, Shock pad x2, Packing list x1
      • Ordering informations
        • IEC-857 IEC-857 chassis, 17" TFT LCD, AT rear panel, Industrial moterboard / 10-slots backblane(Optional), Industrial power supply
      • IEC-857T IEC-857 chassis, 17" TFT LCD, Touchscreen, Industrial moterboard / 10-slots backblane(Optional), Industrial power supply
        • Export markets
          • North America / South America / Caribbean / West Europe / East Europe / Russia / East Asia / Southeast Asia / Mid-East / Africa / Australia / New Zealand / China / Hong Kong
        • Product advantages
          • Well and High Quality Control
        • Prompt Delivery
        • New Product
        • Customer's Designs and Logos are Welcome
        • Competitive Prices
        • In a Variety of Designs
        • ODM Accepted
        • OEM Accepted
Certificate
  • ce/iso9001:2000

Main Products

Industrial computer, Panel PC, embedded PC, network secruity platforms
