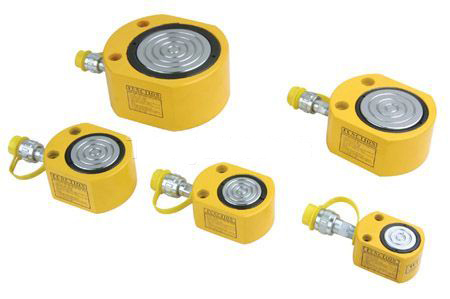

Hydraulic Cylinder

Product ID: YQD-XX

Send Inquiry
YQD-101: Output: 10T, Stroke: 11mm, Effactive area: 11. 3cm² , Oil capacity: 0. 016L Height of product: 47mm, Extended height: 58mm, Outside dia: 81χ 56mm, Bore dia: 43mm, Plunger dia: 38mm, Thread for input oil-port: 3/8-19ZG, Saddle protrusion form plgr: 2mm, Weight: 1. 5kg
YQD -201: Output: 20T, Stroke: 11mm, Effactive area: 22cm² , Oil capacity: 0. 031L Height of product: 52mm, Extended height: 63mm, Outside dia: 100χ 77mm, Bore dia: 60mm, Plunger dia: 53mm, Thread for input oil-port: 3/8-19ZG, Saddle protrusion form plgr: 2mm, Weight: 2. 7kg
YQD -301: Output: 30T, Stroke: 12mm, Effactive area: 31. 1cm² , Oil capacity: 0. 05L Height of product: 63mm, Extended height: 75mm, Outside dia: 115χ 95mm, Bore dia: 75mm, Plunger dia: 63mm, Thread for input oil-port: 3/8-19ZG, Saddle protrusion form plgr: 2mm, Weight: 4. 5kg
YQD -501: Output: 50T, Stroke: 16mm, Effactive area: 56. 7cm² , Oil capacity: 0. 113L Height of product: 69mm, Extended height: 85mm, Outside dia: 138χ 115mm, Bore dia: 95mm, Plunger dia: 85mm, Thread for input oil-port: 3/8-19ZG, Saddle protrusion form plgr: 2mm, Weight: 7kg
YQD -1001: Output: 100T, Stroke: 16mm, Effactive area: 95cm² , Oil capacity: 0. 211L Height of product: 86mm, Extended height: 102mm, Outside dia: 185χ 160mm, Bore dia: 130mm, Plunger dia: 110mm, Thread for input oil-port: 3/8-19ZG, Saddle protrusion form plgr: 2mm, Weight: 15. 7kg
Features
.thin
