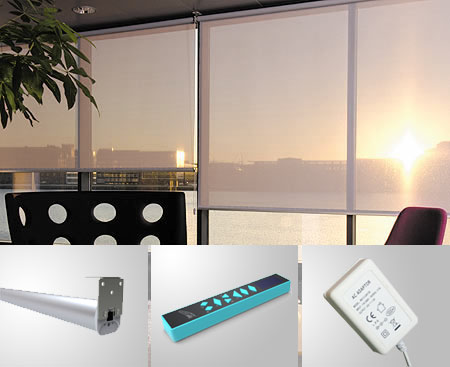

Motorized roller blind with DC motor

Motorized roller blind with DC motor

DC motor electric roller blind and shutter

Product ID: Model MJ-CJA153058

Send Inquiry
Motorized electric roller blind/shade/shutter
Model MJ-CJA153058
Rated voltage DC 24V
Rated power 36W
Control mode IR/RF(Build-in-Receiver)/Switch
Received radio frequency 433.92MHZ
Power interface standard interface DC-00050 (2mm bus bar, central to anode)
Control interface standard interface RJ45
Speed 18r/min
Noise 30dB
Motor diameter DIA31mm
Load 15KG
The area of curtain ≤10m2
Timer ×
Direction exchanged
Memory function
Overvoltage protection
Overload protection
Certificate CCC、CE


Function
1The rugged aluminum case for anti-impact,
2Electronic limit switch, remote control and switch control,
3 Quiet motor running ,Stops at any position once touch button,
4 Easy installation and setup, design and develop under DIY concept,
5 Built-in receiver, Simple and easy installation with driver and control system in one box,
6 One remote can operate 5 sets of units without interference of each other,
7 Be equipped with self-protection system when the curtain is overload and overvoltage,
8 IC programmed with memory function, Be widely used to all windows Safe and reliable designed with DC24V transformer,
Certificate
  • CCC
  • CE
