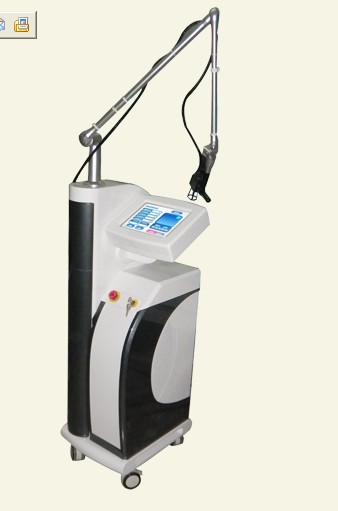

Applications of CO2 Fractional Laser machine
1) Acne scars
2) Actenic keratoses
3) Basal cell carcinoma
4) Burn debridement
5) Laser skin resurfacing
6) Eliminating the scar by traumatism or operation
7) Improving texture tone and pore size
8) Erasing unwanted brown spots
9) Smoothening wrinkles around the eyes and mouth
10) Rejuvenating neck, chest and hands etc
*Features & Advantages of CO2 Fractional Laser machine
1) Medical CE approved
2) Unparalleled char-free ablation, vaporization, excision, or incision of soft tissues
3) Reduced thermal damage to surrounding tissues
4) Rapid healing and minimal downtime
5) Stimulate deeper collagen with high pulse energy
6) Adjustable scanning patterns and size
7) Adjustable intensity of pilot beam from zero to maximum
8) Adjustable pulse duration
9) Last treatment setting memorization
10) Automatic alarm system for operation and troubles
11) Covers all functions of conventional system
12) No consumable costs
13) High Energy Outputs, high effective
*Working Theory of CO2 Fractional Laser machine
The angle of radiation of CO2 laser is very small and its energy density is high. Output power density will reach several kilowatts per square cm. CO2 laser surgical system outputs infrared rays which wavelength is 10600nm . Its penetrability is comparative large. Because it can incise focus tissue after focusing, CO2 laser surgical system is also considered as laser scalpel. If beam of laser is enlarged, it is good for the heating-up physical therapy of the deepest tissue.
During the procedure, only a tiny proportion of the skin receives the laser light. The laser delivers a series of microscopic, closely spaced laser spots to the skin while simultaneously preserving the normal healthy skin. The undamaged skin becomes a reservoir of tissue for fast heating and regeneration of the treated area by producing and providing new dermal collagen and eliminating epidermal pigmentation and irregularities to the skin tone.
*Technical Parameter of CO2 Fractional Laser machine
1)Wavelength
10.6μm±0.1μm
2)Power
1~40W
3)Starting Voltage
≤25kV
4)Operating Voltage
≤15kV
5)Operating Current
≤25mA
6)Focal Flare Diameter
≤0.15mm(FFLS);≤0.2mm(HFLS)
7)Indication Beam
Red semiconductor laser (660nm, ≤5mW)
8)Transmission System
7-Articulation Joint Spring-Balanced Light Guiding Arm
9)System Control
Microcomputer control, soft version 4.0
10)Operating Mode:
Ultra Pulse Factional
11)Scan scanning area
FFLS Max 15*15mm
HFLS Max 20*20mm
12)scanning graphic
Rectangular,Ellipse,circle,Rect,straight line,hexagon,triangle
13)scanning speed
10m/s
14)Continuous
1~40W, Step Adjustable per 1W
15)Pulse Interval Time
0~999ms, Step Adjustable per 1ms
16)Modulation Frequency
Frequency 0~999Hz, Step Adjustable per 1Hz
17)Cooling System
Built-in circulating water cooling
18)Power Supply
AC 220V±22V; 50Hz±1Hz
19)Net Weight
70kg
*Warranty:
We have2 years warranty, and 24 hours’ on-line service is always available.
*OEM and ODM services are our specialty,and welcome to contact us!
