Along with the continuous development of shock-wave technology using in medical clinics, take advantage of this technology to treat diseases not limited in calculus has achieved great breakthrough and formed a completely new therapy concept — Extracorporeal Shock-wave Therapy (ESWT). Through many years’ fundamental research and clinical practice, extracorporeal shock-wave technology has became a new non-surgical treatment method for treating bone diseases.

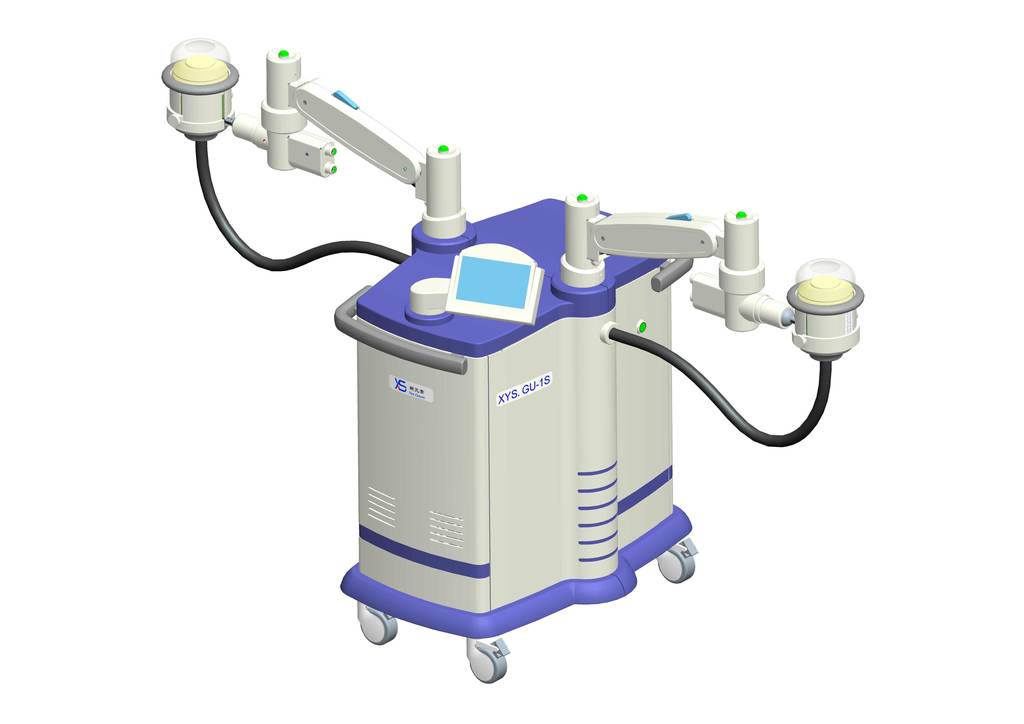

Electromagnetic shock-wave bone therapy apparatus produced by New Element Company is a reliable, practical, safe, effective therapy equipment with high performance.
Electromagnetic shock-wave bone therapy apparatus produced by New Element Company is a reliable, practical, safe, effective therapy equipment with high performance.
Specifications
- Shock-wave parameters
- Peak value of shock-wave focal pressure 6MPa-30MPa
- Width of focal shock-wave≤2μs
- Shock-wave front≤1μs
- Focal dimension: radial direction≤±7mm
- Distance between focus and lens 110mm
- Mechanical parameters
- Therapy voltage 6Kv-15kv adjustable;
- Count range of triggering 0-9999;
- Continuous triggering frequency range 0.5-2Hz
- Mechanical parameters
- Adjustable angle of source head and its cover
- Spherical rotation ±180°（around “axis 1”）
- Swivel angle ±50°（around “axis 2”）
- Lifting range≥240mm.
- Adjustable range of front-arm
- Swivel angle ±90°（around “axis 2”）,difference 10%
- Adjustable range of back-arm：no less than 100°（around “axis 3）
Features
- Obtain many national patents
- Luxury appearance, beautiful color, harmonious, full of humanness
- Flexible and exquisite therapy arm, reliable lock up feature, satisfy treating different part of body
- Electromagnetic source head can adjust the therapy depth
- Principles
- Make use of the physical effect of shock-wave, stimulate the regeneration of bone tissue and mesenchymal cell, improve the oxygen absorption of blood cell, accelerate the microcirculation, facilitate the formation of new bone and bone callus.
- Make use of the benefits and penetration of shock-wave, loosen joint and soft tissue adhesion, improve the partial blood circulation.
- Make use of the biological effect of shock-wave, treat inflammation, relieve pain
- Benefits
- Non-invasive treatment, low risk, high cure rate.
- Short-term treatment, unnecessary be in hospital, low treatment fee.
- Lower postoperative pain level, quick postoperative recovery.
- Bone tissue disease
- Delay healing of bone fracture
- Ununion of bone fracture
- Avascular necrosis of femoral head in adult
- Chronic soft tissue injury disease
- Soft tissue chronic injury disease
- Subacromial bursitis
- Inflammation of long tendon of biceps muscle
- Calcified supraspinatus tendonitis
- Internal humeral epicondylitis
- Tennis elbow
- Snapping hip
- Jumpers’ knee
- Heel pain
