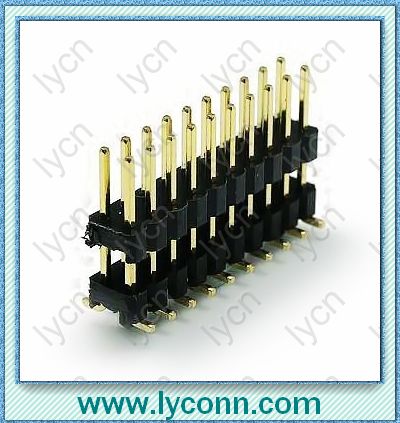

2.54mm dual row SMT pin header

Product ID: pin-003

Send Inquiry
2.54mm dual row SMT pin header,RoHS Compliance
Specifications
  • Pin Header SPECIFICATATIONS
    • Current Rating: 3.0 AMP
  • Contact Resistance: 30 mΩ Max
  • Insulation Resistance: 1000MΩ Min
  • Withstand Voltage : 600VAC/minute
  • Operation Temperature : -40 °C to +105°C
  • MATERIALS :
  • Contact Material : Copper Alloy
  • Contact Plating:Gold or Tin over 50µ" NI
  • Insulator Material:Polyester(UL94V-0) Standard:PBT
  • Number of Contacts: 10Pin-64Pin
  • Contact Plated : Tin/Gold Flash / Gold 3µ'' / Gold 5µ'' / Gold 10µ'' / Gold 15µ'' / Gold 30µ'' /
  • Material Type: PPS / PBT / LCP / Nylon-66 / Nylon-6T / PA46
  • Tiers of Body: Single / Double tier / Triple tier
