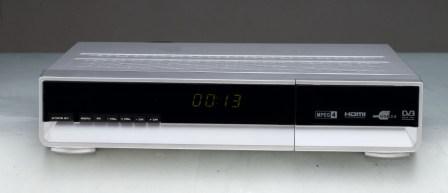

HD DVB Combo Receiver USB+HDMI

Product ID: 3

Send Inquiry
- 266 MHz ST40 CPU SH4 Core. STi 7101 based.
- Linux Operating System (ENIGMA 2)
- Linux DVB-API compatible.
- WiFi - 802.11n. Stand-Alone internal Module (optional)
- Ethernet 10/100 MBit compatible interface
- MPEG-2 / H.264 Hardware decoding
- Tuner: DVB-S2, DVB-C, DVB-T
- 2 x Tuner Module Input - Plug&Play 1 SAT + 1 DVB-T (DVB-T optional) OR 1 DVB-C (DVB-C optional)
Specifications
  • DVB-S2 Tuner
    • - Frequency Range 950 .... 2150 MHz
  • - Demodulation DVB-S (QPSK); DVB-S2 (8PSK,QPSK)
  • - Symbol rate DVB-S: 2 ... 45 Mbaud/s, SCPC/ MCPC
  • - DVB-S2: 10 - 31 Mbaud/s (8PSK) , 10-30 Mbaud/s (QPSK)
    • Video decoder
      • - Video Compression MPEG-2 and MPEG-1 compatible, H.264
    • - Video Formats 4:3 / 16:9
    • - Letterbox for 4:3 TV-Device
    • - Capable Resolution: (1080I, 720P, 480P/576P, 480I/576I)
      • Audio decoder
        • - Audio Compression MPEG-1 & MPEG-2 Layer I and II, MP3
      • - Audio Mode Dual (main/sub), Stereo
      • - Frequency: 32 kHz, 44.1 kHz, 48 kHz, 16 kHz, 22.05 kHz, 24 kHz
        • DVB-C(DVB-C optional)
          • - 2 x Smartcard-Reader ISO 7816-3 with programmable clock speed
        • - V.24/RS232 Interface
        • - 10/100Mbit Ethernet Interface
        • - 1 x Scart (RGB, FBAS or S-Video)
        • - HDMI Output
        • - 2 x USB 2.0 external USB
        • - 1 x USB 2.0 internal for FileSystem
        • - S/PDIF Interface for digital bit stream out (AC-3)
        • - 8 MByte NOR for Secure Bootloader, 128 MByte RAM
        • - unlimited channel lists for TV/Radio
        • - EPG (electronic program guide)
        • - multiple LNB-Switching control (supports DiSEqC)
        • - OSD in many languages and skin-support
        • - Videotext Decoder
          • Video parameter
            • - Input Level FBAS 1 Vss +/- 0.3 dB on 75 Ohm
          • - Teletext filter in conformity with ETS 300 472 Standard
          • - Output: FBAS, RGB, S-Video, HDMI
Features
  • Serial Interface RS 232
    • - RS232 bidirectional
  • - BitRate 115.2 kBit/s max.
  • - Plug Connector SUB-D-9
    • USB
      • - 2 x USB 2.0 Host
    • - 1 x USB 2.0 Host Internal Slot for USB stick to hold the Firmware
