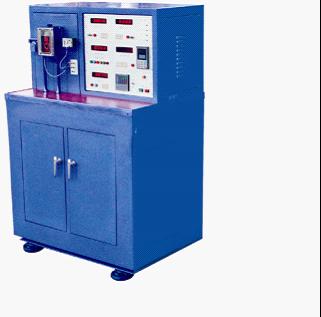

Main Technical Specifications
1. Maximum testing force:3000N，Accuracy of testing force:≤±1％;
2. Determination of the maximum friction force:300N，Friction accuracy:≤±2％;
3. Spindle speed range:100～2000r/min(200~5000r/min)Variable and adjustable;
4. Spindle speed error:≤±2％，Display range of spindle revolutions:0～9999999r;
5. Time display and control range:0～9999s(min);
6. Test oil temperature range :Room temperature～100℃;      Temperature control accuracy:≤±2℃;
7. Standard test ring size (mm):φ49.22×13.06;
8. Standard test block size (mm):φ12.32×19.05;
9. Dimension of host machine(L×W×H)(mm):1000×700×1500
