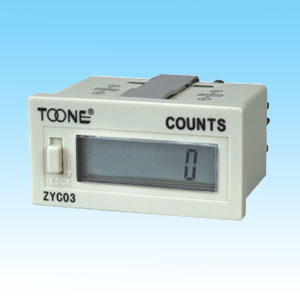

Digital counter

Product ID: ZYC03

Send Inquiry
DIN-size: 48×96mm
Display: 0.39 inch 6Digits LED (Red)
Operating voltage : DC24V; AC 24V,36V,110V,127V,220V,380V/50HZ
Allow fluctuating voltage range (85%~110%)Ue
Count range : 1~999999
Count mode: addition count
Count velocity: 1. 30 times /S (internal switch on ON)
2. 1000 times/S (internal switch on 1)
Specifications
  • Feature
    • DIN-size: 48×96mm
  • Display: 0.39 inch 6Digits LED (Red)
  • Operating voltage : DC24V; AC 24V,36V,110V,127V,220V,380V/50HZ
  • Allow fluctuating voltage range (85%~110%)Ue
  • Count range : 1~999999
  • Count mode: addition count
  • Count velocity: 1. 30 times /S (internal switch on ON)
  • 2. 1000 times/S (internal switch on 1)
    • Input signal
      • Input signal :
    • 1. Signal count (limited switch, photoelectric switch, hall switch), showed as fig. 2.
    • 2. Contact signal count (limited switch), showed as fig. 3.
    • 3. Pulse signal count (H: DC 4V~30V, L: 0~DC2v, input resistance ≥ 4.7KΩ) ;showed as fig. 4.
    • Mounting type: panel mounting
    • Sensor power supply :DC12V±10% 30mA(max)
    • Panel cutout : 45x92 mm
    • Outline dimensions: 48x96x112mm
    • Reset mode : push button switch or terminal short (①&③ short)
    • Temperature: -10~+50℃(NO freeze)
    • Memory Backup: 10 Years (at 20℃)
Certificate
  • ISO9001:2000
