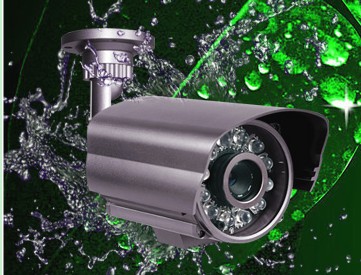

water-proof ip camera
Image sensor: 1/3" Color Sony Super HAD
Horizontal Resolution: 420TVL
Minimum Illumination: 0 Lux/ F 1.2
S/N Ratio >48dB
E-shutter, compensation PAL 1/50~1/100, 000, NTSC; 1/60~1/ 100, 000, AUTO
White balance: AUTO, Internal
Max Pixel: D1: 720*576 (PAL), 720*480 (NTSC) "
Compression standard: H. 264
Frame rate/ streaming rate maximum: 25fps(PAL), 30fps(NTSC), 32Kbps~3Mbps, CBR/VBR adjustable
OSD function: LOGO, character, time overlay in video system
Audio input : 1 channel RCA, mico/linear input
Audio output: 1 channel RCA output
Audio parameter frequency: 8KHz, Bit wide: 16 Bit; Compression: G711A; Frame Rate: 32Kps
Network Interface: RJ45*1 10/100M (optional),
IP: TCP/IP, UDP/IP, HTTP, ICMP, FTP, EMAIL, TELNET and so on
IE application: Built-in Web server, user can control video server by IE directly
IE function: Website search, internet monitor, ADSL,
Mobile detective: Sensitivity range 1-9, detecting area: 16*12.
Alarm I/O: Input * 1, Output * 1
Video lost alarm: When video lost, linkage alarm will occur, which can inform user on time
RS422/RS485: used in PTZ control
User management : multi-stage user password verification, multiusers are also allowed to visit at same time
Built-in watch dog: automatic reset system make sure the unit works smoothly
Remote reset: Remote reset system controlled by internet
Infrared distance: 10-60M
Power supply: DC12V 1A,
Horizontal Resolution: 420TVL
Minimum Illumination: 0 Lux/ F 1.2
S/N Ratio >48dB
E-shutter, compensation PAL 1/50~1/100, 000, NTSC; 1/60~1/ 100, 000, AUTO
White balance: AUTO, Internal
Max Pixel: D1: 720*576 (PAL), 720*480 (NTSC) "
Compression standard: H. 264
Frame rate/ streaming rate maximum: 25fps(PAL), 30fps(NTSC), 32Kbps~3Mbps, CBR/VBR adjustable
OSD function: LOGO, character, time overlay in video system
Audio input : 1 channel RCA, mico/linear input
Audio output: 1 channel RCA output
Audio parameter frequency: 8KHz, Bit wide: 16 Bit; Compression: G711A; Frame Rate: 32Kps
Network Interface: RJ45*1 10/100M (optional),
IP: TCP/IP, UDP/IP, HTTP, ICMP, FTP, EMAIL, TELNET and so on
IE application: Built-in Web server, user can control video server by IE directly
IE function: Website search, internet monitor, ADSL,
Mobile detective: Sensitivity range 1-9, detecting area: 16*12.
Alarm I/O: Input * 1, Output * 1
Video lost alarm: When video lost, linkage alarm will occur, which can inform user on time
RS422/RS485: used in PTZ control
User management : multi-stage user password verification, multiusers are also allowed to visit at same time
Built-in watch dog: automatic reset system make sure the unit works smoothly
Remote reset: Remote reset system controlled by internet
Infrared distance: 10-60M
Power supply: DC12V 1A,
Specifications
- IR IP Water-proof Camera,
- Image sensor 1/3" Color Sony Super
- Horizontal Resolution 420TVL
- Compression standard: H. 264
