Insulating Glass Butyl sealant extruder JT02automatic adjust sealant extruding width)
Product ID: JT02
Send Inquiry

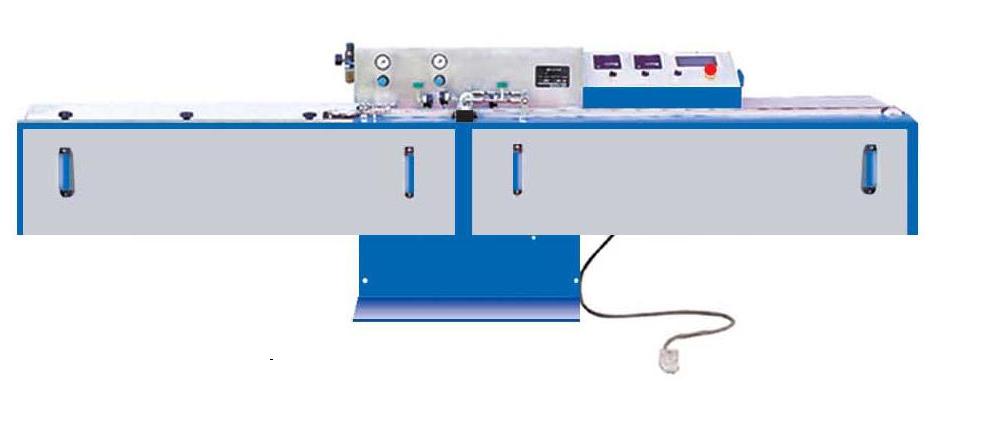

Insulating Glass Butyl sealant extruder JT02
(automatic adjust sealant extruding width)
JT02 butyl extruder enables melt butyl to coat the aluminum spacing frame of the insulating glass appropriately, which is designed entirely steady to make sure a stable performance during working. Electric controller with a great touch screen is adopted to make the operation easier and more convenient ; frequency conversion timing controller is used in the aluminum spacing frame transmission system in order to obtain the stepless speed change between 0 to 25 m/min; gas and fluid pressurizing driving system is used in the glue-squeezing system ,which makes the pressure more stable and enables the machine to save energy ; turning support equipment is adopted in glue-squeezing cylinder, making it more convenient when sealant is filled in, and improving the service life of the cylinder; heating time within 0—96 hours can be arbitrarily designed provided that electricity and gas can be supplied ;the work table can be adjusted within a certain range .This machine is equipped with full functions and has a stable operation as well as superior performance ,which has reached the world-class level.
Technique Date
Input voltage 380V ; 50Hz
Total power 1.45Kw
Transmit speed 0-25m/min
Temperature 130-140℃
Air pressure 0.5-0.8Mpa
Squeeze pressure 20Mpa
Adjustable range 6-20mm
Whole machine size 3000*620*1102mm
Air consumption 60L/min
(automatic adjust sealant extruding width)
JT02 butyl extruder enables melt butyl to coat the aluminum spacing frame of the insulating glass appropriately, which is designed entirely steady to make sure a stable performance during working. Electric controller with a great touch screen is adopted to make the operation easier and more convenient ; frequency conversion timing controller is used in the aluminum spacing frame transmission system in order to obtain the stepless speed change between 0 to 25 m/min; gas and fluid pressurizing driving system is used in the glue-squeezing system ,which makes the pressure more stable and enables the machine to save energy ; turning support equipment is adopted in glue-squeezing cylinder, making it more convenient when sealant is filled in, and improving the service life of the cylinder; heating time within 0—96 hours can be arbitrarily designed provided that electricity and gas can be supplied ;the work table can be adjusted within a certain range .This machine is equipped with full functions and has a stable operation as well as superior performance ,which has reached the world-class level.
Technique Date
Input voltage 380V ; 50Hz
Total power 1.45Kw
Transmit speed 0-25m/min
Temperature 130-140℃
Air pressure 0.5-0.8Mpa
Squeeze pressure 20Mpa
Adjustable range 6-20mm
Whole machine size 3000*620*1102mm
Air consumption 60L/min
Features
. Butyl sealant extruderCertificate
- CE
