Two Hammer Type (OP-301L90, OP-307L90, OP-310LHA, OP-311LHA) - Hong Bing Pneumatic Industry Co., Ltd.

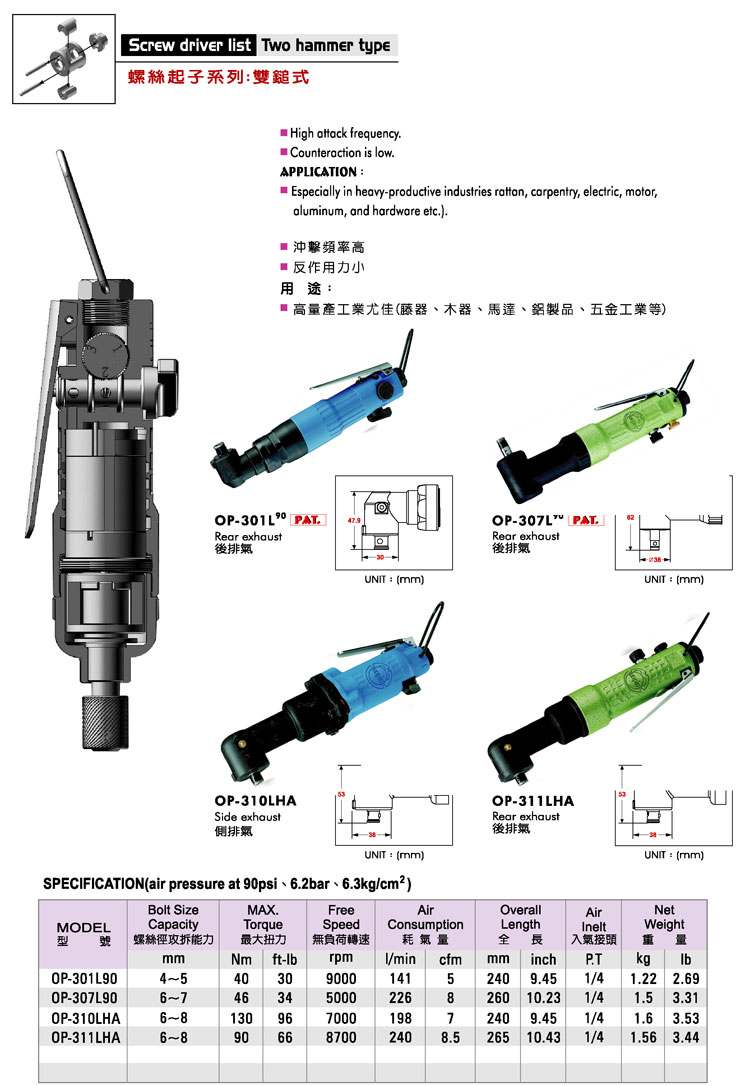

Two Hammer Type

Product ID: OP-301L90, OP-307L90, OP-310LHA, OP-311LHA

(1) High attack frequency.
(2) Counteraction is low.
Application:
Especially in heavy-productive industries rattan, carpentry, electric, motor, aluminum, and hardware etc.).

MODEL	Bolt Size Capacity	MAX. Torque	MAX. Torque	Free Speed	Air Consumption	Air Consumption	Overall Length	Overall Length	Air Inelt	Net Weight	Net Weight
	mm	Nm	ft-lb	rpm	1/min	cfm	mm	inch	P.T	kg	lb
OP-301L90	4~5	40	30	9000	141	5	240	9.45	1/4	1.22	2.69
OP-307L90	6~7	46	34	5000	226	8	260	10.23	1/4	1.5	3.31
OP-310LHA	6~8	130	96	7000	198	7	240	9.45	1/4	1.6	3.53
OP-311LHA	6~8	90	66	8700	240	8.5	265	10.43	1/4	1.56	3.44
