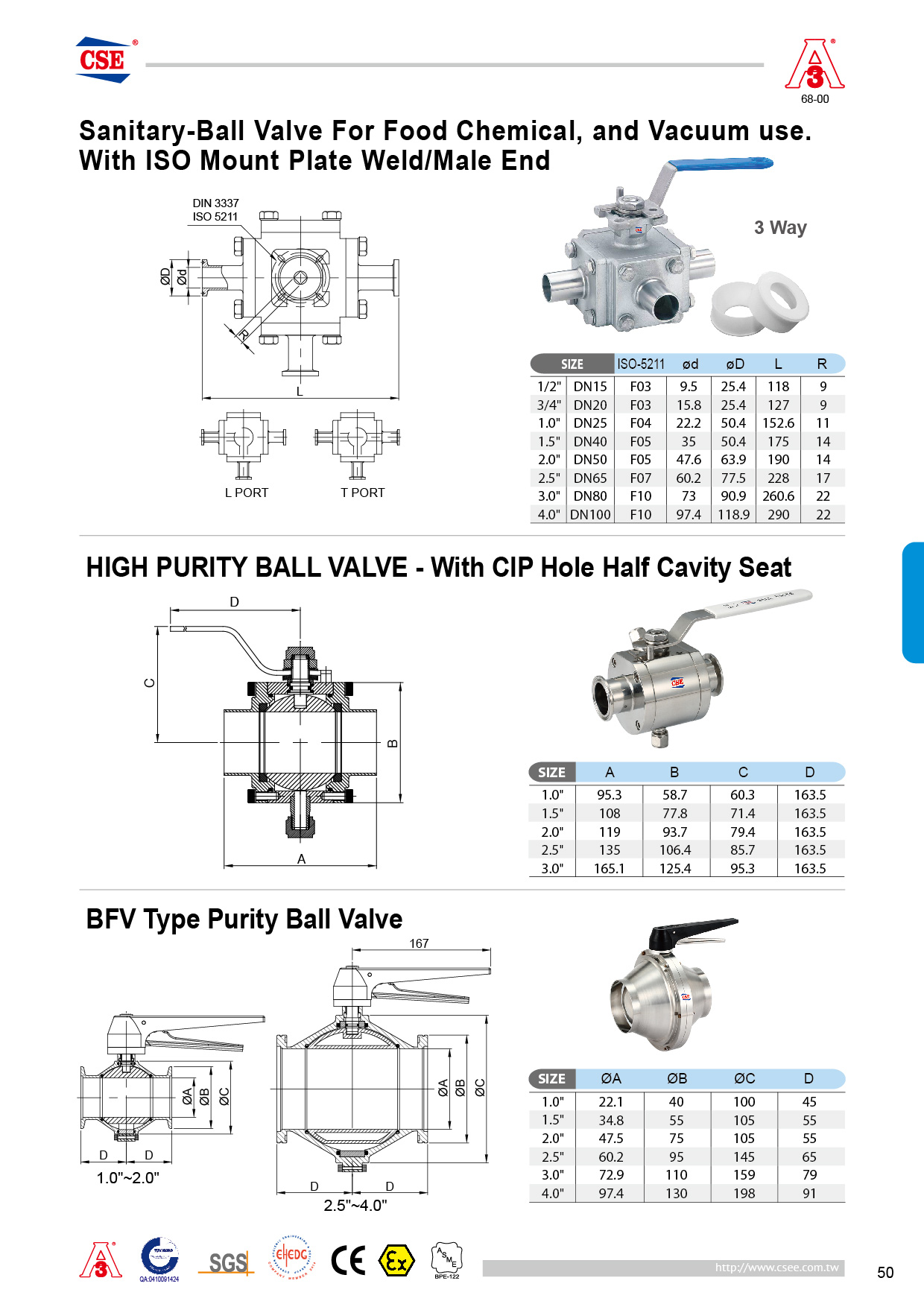

CSE Group can provide high-purity ball valves. It adopts a full bore design to achieve full fluid flow action. The end connection complies with ASME BPE, ISO and DIN standards. If used in the pharmaceutical industry, the inner surface can be polished to Ra<0.51um or Ra<0.38um by Satin, Mirror, or electronic polishing.

The design of the ball gasket has passed FDA certification and qualified material.

Gasket Material can options for PTFE、PTFE+Carbon、PTFE+GB、PTFE+50%SS. as your function needs.

CSE ball valves are suitable for sticky liquids or liquids containing granules, such as the food industry, biotechnology, beverage, chemical and pharmaceutical industries.

Specification:

• Size:
  • 1/4”- 6”
  • DN50~ DN80
• Material:
  • 316/ 316L/ CF3...etc.
• Ball seat material:
  • PTFE
  • PTFE+Carbon
  • PTFE+GB
  • PTFE+50%SS
• Max Temperature:
  • -10°C~ 130°C
• Standard End:
  • SMS
  • RJT
  • DIN
  • 3A
  • ISO
  • Weld end
  • Clamp end
  • Male/ Male
  • other can be required
