Features
- Features and Quality
- High speed, High accuracy, attaining fully efficiency of machine features and quality.
- High indexing accuracy, Speedy positioning
- An increase efficiency in power and shorten working time.
- Setting Unit 0.001°
- It easily connected with M signal without adding interface.
- Multi-use and Multi-function
- For vertical and horizontal operations which suited for use on CNC machining Center, Grinding machine, Special machine, Tapping center...etc.
- Economic price, Promoting your profit
- The refined machine and maximum productivity operation, reducing a number product pieces Cost.

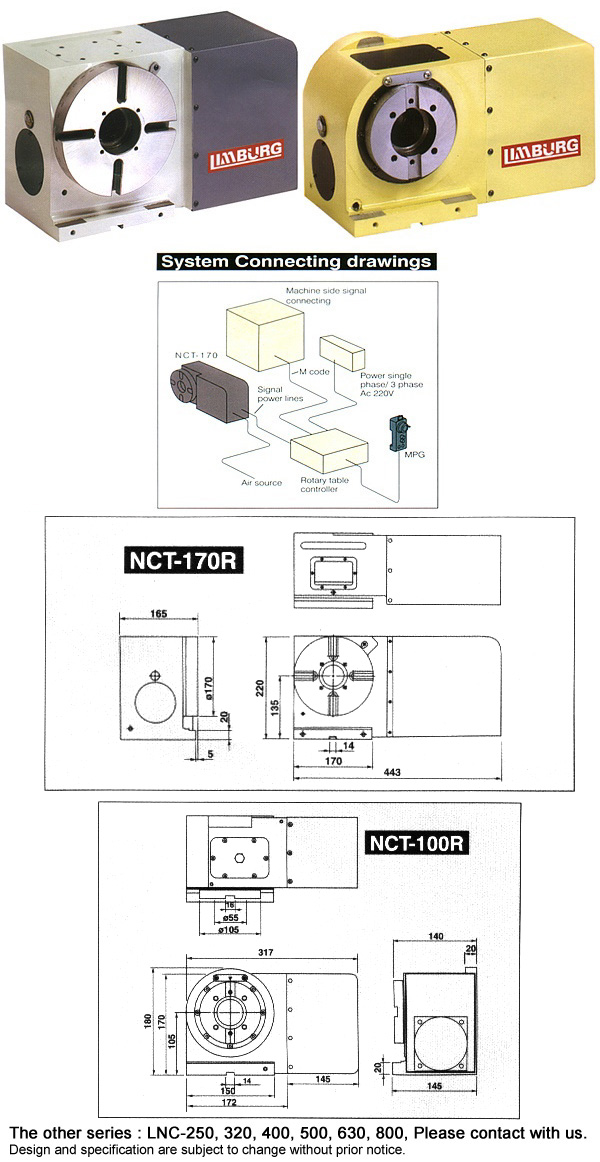

| Model | NCT-100R | NCT-170R |
|---|---|---|
| Table diameter | Dia.105mm | Dia.170mm |
| Vertical center height | 105mm | 135mm |
| Horizontal overall height | 145mm | 160mm |
| Vertical overall height | 163mm | 220mm |
| Through hole diameter | Dia.45mm | Dia.40mm |
| T-slot width | 12mm | 12mm |
| Guide slot width | 14mm | 18mm |
| Servo motor type | Mitsubishi AC servo motor | Mitsubishi AC servo motor |
| Teeth ratio | 90:1 | 90:1 |
| Clamping way | Pneumatic 6Kgf/cm² | Pneumatic 6Kgf/cm² |
| Min. index unit | 0.001° | 0.001° |
| Max. speed | 33.3R.P.M. | 33.3R.P.M. |
| Horizontal loading capacity | 75kg | 150kg |
| Vertical loading capacity | 35kg | 50kg |
| Index accuracy | 25 sec | 25 sec |
| Repetitive accuracy | ±2 sec | ±2 sec |
