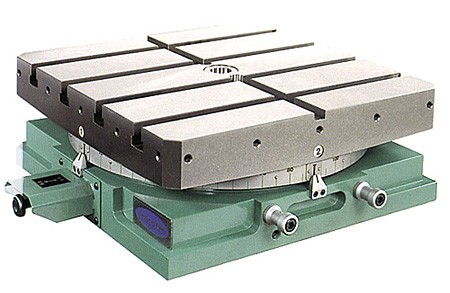

Specifications
- Drive:
- Vertical: air pressure 5-8 kgs/cm²
- Swivel: manual
- Index numbers: indexes of 2, 3, 4, 6, 8, 9, 12, 18, 24, 36, 72, and 5° indexes special index available
- Swivel direction: right & left swivel
- Index accuracy (sec): 4 indexes ±2 sec, 72 indexes ±3 sec
Features
- Well suited for use on a boring, milling or drilling machine...etc.
- Clutch gear positioning.
- Air clamping system.
| Model | LGT-450 | LGT-600 | LGT-700 | LGT-800 | LGT-1000 | LGT-1200 |
|---|---|---|---|---|---|---|
| L x W | 450 x 450 (18" x 18") | 600 x 600 (24" x 24") | 700 x 700 (28" x 28") | 800 x 800 (31" x 31") | 1,000 x 1,000 (40" x 40") | 1,200 x 1,200 (47" x 47") |
| Overall height | 150 (6") | 200 (7-7/8") | 220 (8-3/5") | 280 (11") | 300 (11-7/8") | 340 (13-3/8") |
| Spindle bore | 30 (1-1/4") | 40 (1-1/2") | 40 (1-1/2") | 60 (2-3/8") | 60 (2-3/8") | 80 (3-1/8") |
| T-slot | 18 (11/16") | 20 (3/4") | 20 (3/4") | 22 (7/8") | 22 (7/8") | 22 (7/8") |
| Vertical theoretical load (kg) | 2,400 (5,921 lb) | 3,400 (7,496 lb) | 3,400 (7,496 lb) | 4,500 (9,920 lb) | 6,000 (13,228 lb) | 7,000 (15,432 lb) |
| Permissible load (kg) | 1,000 (2,205 lb) | 2,000 (4,409 lb) | 2,000 (4,409 lb) | 3,000 (6,614 lb) | 5,000 (11,023 lb) | 6,000 (13,280 lb) |
| Weight (kg) | 200 (441 lb) | 400 (882 lb) | 600 (1,323 lb) | 900 (1,984 lb) | 1,200 (2,646 lb) | 2,000 (4,409 lb) |
| Accuracy chart | - | - | - | - | - | - |
| Model | LGT-450 mm/inch | LGT-600 mm/inch | LGT-700 mm/inch | LGT-800 mm/inch | LGT-1000 mm/inch | LGT-1200 mm/inch |
| Table surface straightness | 0.015/0.0006 | 0.02/0.0008 | 0.02/0.0008 | 0.02/0.0008 | 0.03/0.0012 | 0.03/0.0012 |
| Table surface run out | 0.01/0.0004 | 0.015/0.0006 | 0.015/0.0006 | 0.015/0.0006 | 0.02/0.0008 | 0.03/0.0012 |
| Parallelism between top and bottom surface | 0.015/0.0006 | 0.02/0.0008 | 0.02/0.0008 | 0.02/0.0008 | 0.03/0.0012 | 0.03/0.0012 |
| T-slot squareness | 0.015/0.0006 | 0.02/0.0008 | 0.02/0.0008 | 0.02/0.0008 | 0.03/0.0012 | 0.03/0.0012 |
| Concentricity of center point | 0.01/0.0004 | 0.01/0.0004 | 0.01/0.0004 | 0.01/0.0004 | 0.01/0.0004 | 0.03/0.0012 |
| Squareness of side reference plane | 0.015/0.0006 | 0.02/0.0008 | 0.02/0.0008 | 0.02/0.0008 | 0.03/0.0012 | 0.03/0.0012 |
| T-slot accuracy (sec) | 0.015/0.0006 | 0.02/0.0008 | 0.02/0.0008 | 0.02/0.0008 | 0.02/0.0008 | 0.03/0.0012 |
| Index accuracy (sec): 4 indexes | ±2 | ±2 | ±2 | ±2 | ±2 | ±2 |
| Index accuracy (sec): 72 indexes | ±3 | ±3 | ±3 | ±3 | ±3 | ±3 |
