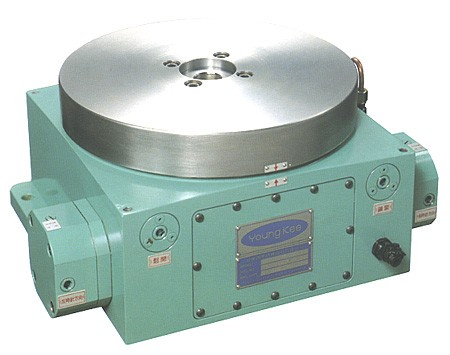

Specifications
- Index numbers:
- 4, 6, 8, 12, 24 (standard)
- 2, 3, 5, 9, 10...(optional)
- Index accuracy: ±5 sec
- Table running direction: clock-wise and counter-clockwise
- Locking method: horizontal type, table upward
Features
- Well suited for use on a machining center or special purpose machine...etc.
- For horizontal application.
- High index accuracy up to ±5 seconds.
- Employs 3 pieces gear plate transmission.
| Model | LD-200 | LD-340 | LD-470 | LD-600 | LD-800 |
|---|---|---|---|---|---|
| Table diameter | Dia.200 | Dia.340 | Dia.470 | Dia.600 | Dia.800 |
| Overall height | 170 | 210 | 240 | 260 | 300 |
| Center hole | Dia.30H6 depth 30 | Dia.65H6 depth 11 | Dia.90H6 depth 11 | Dia.110H6 depth 11 | Dia.120H6 depth 40 |
| Through hole | 25.5 | 30 | 40.5 | 53 | 80 |
| Table running torque (kg*m) | 8 | 60 | 80 | 100 | 280 |
| Permissible load (kg) | 120 | 500 | 700 | 1,250 | 2,400 |
| Permissible instant torque (kg*m²) | 7 | 85 | 180 | 500 | 1,200 |
| Clamping force (kg) | 560 | 1,560 | 3,970 | 7,916 | 11,300 |
| Working pressure (kg/cm²) | 6-8 | 30 | 30 | 35 | 35 |
| Weight (kg) | 40 | 98 | 250 | 550 | 1,000 |
| Accuracy chart | - | - | - | - | - |
| Inspection items | Permissible value | Permissible value | Permissible value | Permissible value | Permissible value |
| Inspection items | LD-200 | LD-340 | LD-470 | LD-600 | LD-800 |
| Center hole run out | 0.02 | 0.02 | 0.02 | 0.02 | 0.02 |
| Table surface run out | 0.015 | 0.015 | 0.02 | 0.02 | 0.02 |
| Table surface straightness | 0.02 | 0.02 | 0.02 | 0.02 | 0.02 |
| Parallelism between top and bottom surface | 0.02 | 0.02 | 0.02 | 0.03 | 0.03 |
| Index accuracy | ±5 sec | ±5 sec | ±5 sec | ±5 sec | ±5 sec |
