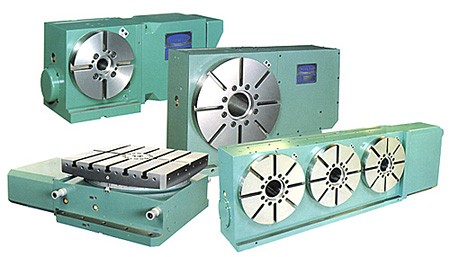

Specifications
- Accuracy chart:
- Index accuracy: inspected by optical measuring device. See specifications.
Features
- Three pieces gear plate transmission.
- Applied for the 4th axis.
- For horizontal and vertical operations.
- High positioning accuracy up to ±5 seconds.
| Model | LGS-170 | LGS-250 | LGS-320 | LGS-400 | LGS-500 | LGS-630 | LGS-800 |
|---|---|---|---|---|---|---|---|
| Index angle | Min. index unit 5° | Min. index unit 5° | Min. index unit 5° is standard. Index unit 1° available | Min. index unit 5° is standard. Index unit 1° available | Min. index unit 5° is standard. Index unit 1° available | Min. index unit 5° is standard. Index unit 1° available | Min. index unit 5° is standard. Index unit 1° available |
| Table diameter | 170 | 250 | 320 | 400 | 500 | 630 | 800 |
| Horizontal overall height | 180 | 200 | 240 | 265 | 300 | Specifications upon request | Specifications upon request |
| Vertical center height | 135 | 170 | 230 | 250 | 310 | Specifications upon request | Specifications upon request |
| Center hole diameter | Dia.30 | Dia.55 | Dia.100 | Dia.120 | Dia.120 | Specifications upon request | Specifications upon request |
| Through hole diameter | Dia.20 | Dia.30 Dia.80 | Dia.80 | Dia.90 | Specifications upon request | Specifications upon request | |
| T-slot width | 12 | 12 | 14 | 14 | 18 | Specifications upon request | Specifications upon request |
| Guide slot width | 14 | 18 | 18 | 18 | 18 | Specifications upon request | Specifications upon request |
| Servo motor type: Mitsubishi | HA-33-CS | HA-40C-S | HA-80C-S | HA-100C | HA-100C | Specifications upon request | Specifications upon request |
| Servo motor type: Fanuc | Þ2 | Þ3 | Þ6 | Þ12 | Þ12 | Specifications upon request | Specifications upon request |
| Speed reduction ratio | 1/72 | 1/120 | 1/120 | 1/120 | 1/120 | Specifications upon request | Specifications upon request |
| Max. speed motor (2,000 R.P.M) | 27.7 | 16.6 | 16.6 | 16.6 | 16.6 | Specifications upon request | Specifications upon request |
| Clamping force (kg*m) hydraulic pressure (35kg/cm²) | 200 | 300 | 400 | 500 | 600 | Specifications upon request | Specifications upon request |
| Permissible load: at horizontal | 250 | 300 | 350 | 500 | 600 | Specifications upon request | Specifications upon request |
| Permissible load (kg): at vertical | 100 | 125 | 175 | 250 | 300 | Specifications upon request | Specifications upon request |
| Permissible cutting torque (kg) | 150 | 250 | 350 | 450 | 550 | Specifications upon request | Specifications upon request |
| Index accuracy (sec) | ±5" | ±5" | ±5" | ±5" | ±5" | Specifications upon request | Specifications upon request |
| Weight (kg) | 65 | 110 | 200 | 350 | 400 | Specifications upon request | Specifications upon request |
| Accuracy chart | - | - | - | - | - | - | - |
| Model | LGS-170 | LGS-250 | LGS-320 | LGS-400 | LGS-500 | LGS-630 | LGS-800 |
| Table squareness | 0.015 | 0.015 | 0.015 | 0.02 | 0.02 | 0.025 | 0.025 |
| Table run out | 0.01 | 0.01 | 0.01 | 0.015 | 0.015 | 0.02 | 0.02 |
| Parallelism between table and bottom surface | 0.02 | 0.02 | 0.02 | 0.02 | 0.02 | 0.025 | 0.03 |
| Spindle hole run out | 0.01 | 0.01 | 0.01 | 0.01 | 0.01 | 0.01 | 0.01 |
| Squareness of table and bottom surface | 0.02 | 0.02 | 0.02 | 0.02 | 0.02 | 0.02 | 0.02 |
| Squareness of table and guide center | 0.02 | 0.02 | 0.02 | 0.02 | 0.02 | 0.025 | 0.025 |
| Parallelism of tailstock center and bottom guide | 0.02 | 0.02 | 0.02 | 0.02 | 0.02 | 0.02 | 0.02 |
| Height difference between table and tailstock center (slightly higher for tailstock) | 0.02 | 0.02 | 0.02 | 0.02 | 0.02 | 0.02 | 0.02 |
