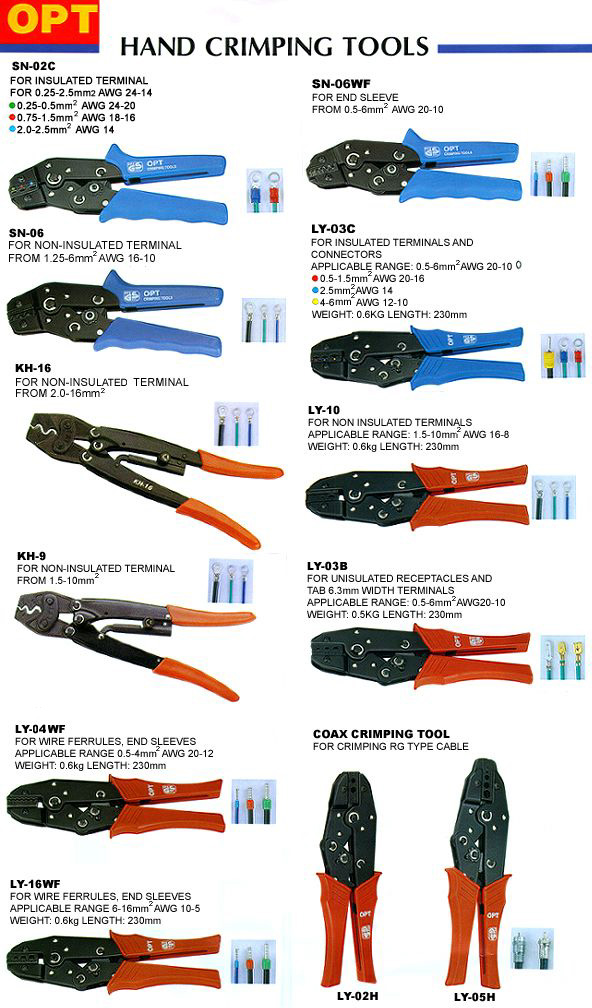

Specifications

• SN-02C
• For insulated terminal from 0.25-2.5mm^2 AWG 24-14.
• 0.25-0.5mm^2 AWG 24-14.
• 0.75-1.5mm^2 AWG 18-16.
• 2.0-2.5mm^2 AWG 14.
• SN-06WF
• For end sleeve from 0.5-6mm^2 AWG 20-10.
• SN-06
• For non-insulated terminal from 1.25-6mm^2 AWG 16-10.
• KH-16
• Applicable range (JIS mm^2): 2 / 5.5 / 8 / 14
• Applicable range (DIN mm^2): 2.0 / 6 / 10 / 16
• Weight(kg): 0.6
• Length(mm): 270
• KH-9
• Applicable range (JIS mm^2): 1.25 / 2 / 5.5 / 8
• Applicable range (DIN mm^2): 1.5 / 2.0 / 6 / 10
• Weight(kg): 0.6
• Length(mm): 250
• LY-03C
• For insulated terminals and connectors.
• Applicable range: 0.5-6 mm^2 AWG 20-10.
• 0.5-1.5mm^2 AWG 20-16.
• 2.5mm^2 AWG 14.
• 4-6mm^2 AWG 12-10.
• Weight: 0.6kg
• Length: 230mm
• LY-10
• For non insulated terminals.
• Applicable range: 1.5-10mm^2 AWG 16-8
• Weight: 0.6kg
• Length: 230mm
• LY-03B
• For unisulated receptacles and TAB 6.3mm width terminals.
• Applicable range: 0.5-6mm^2 AWG 20-10
• Weight: 0.6kg
• Length: 230mm
• LY-04WF
• For wire ferrules, end sleeves.
• Applicable range: 0.5-4mm^2 AWG 20-12
• Weight: 0.6kg
• Length: 230mm
• LY-16WF
• For wire ferrules, end sleeves.
• Applicable range: 6-16mm^2 AWG 10-5
• Weight: 0.6kg
• Length: 230mm
